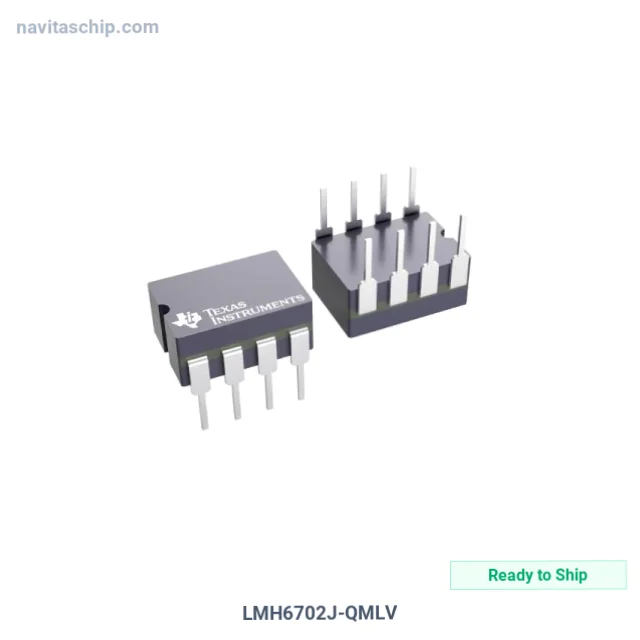

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LMH6702J-QMLV |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-18178746 |
| Description | 1.7 GHZ, ULTRA LOW DISTORTION, W |
| Spec | 8-CDIP (0.300", 7.62mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Active |
| Amplifier Type | Current Feedback |
| Number of Circuits | 1 |
| Output Type | Single-Ended |
| Slew Rate | 3100V/µs |
| -3db Bandwidth | 720 MHz |
| Current - Input Bias | 30 µA |
| Current - Supply | 12.5mA |
| Current - Output / Channel | 80 mA |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 12 V |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 8-CDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments LMH6702J-QMLV Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LMH6702J-QMLV is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). operating at 1.7GHz, housed in a compact 8-CDIP package. Originally developed by National Semiconductor.
Key Technical Specifications
- Output Type: Single-Ended
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting: Through Hole
- Package: 8-CDIP (0.300", 7.62mm)
- Device Package: 8-CDIP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
