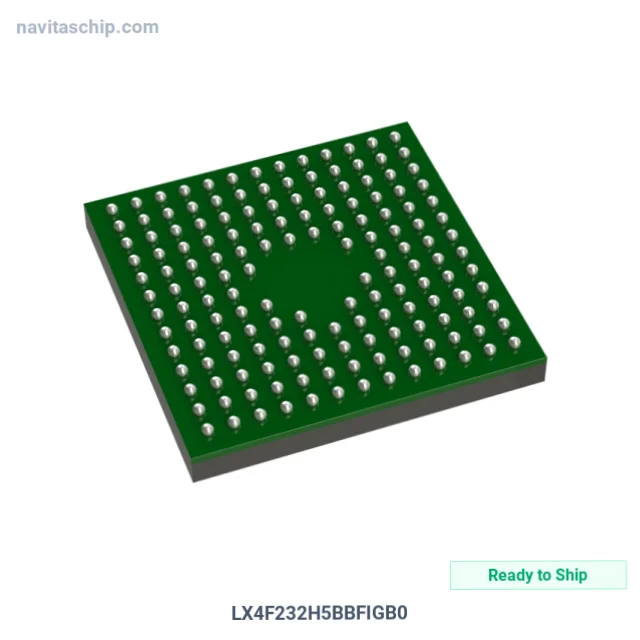

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LX4F232H5BBFIGB0 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-3878786 |
| Description | IC MCU 32BIT 256KB FLASH 157BGA |
| Spec | 157-VFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Discontinued at |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit |
| Speed | 80MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, Microwire, QEI, SPI, SSI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 120 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.08V ~ 3.63V |
| Data Converters | A/D 24x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 157-BGA Microstar Junior (9x9) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments LX4F232H5BBFIGB0 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LX4F232H5BBFIGB0 is a Microcontroller (MCU) manufactured by Texas Instruments (TI). Integrated Circuit Microcontroller 32bit 256kb Flash Memory in 157-Pin BGA Package, housed in a compact 157-BGA Microstar Junior (9x9) package.
Don't let minimum order quantity requirements slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 157-VFBGA
- Device Package: 157-BGA Microstar Junior (9x9)
Applications
Designed for:
- consumer electronics
- industrial control
- smart home
Why Choose NavitasChip for LX4F232H5BBFIGB0?
NavitasChip offers Allocated parts in stock when authorized channels face shortage for the LX4F232H5BBFIGB0 and thousands of other electronic components.
- Availability: Same-day Shipping Options
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
LX4F232H5BBFIGB0 sourced and shipped via our Asia-Pacific distribution network.
LX4F232H5BBFIGB0 - Check our competitive price now.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
