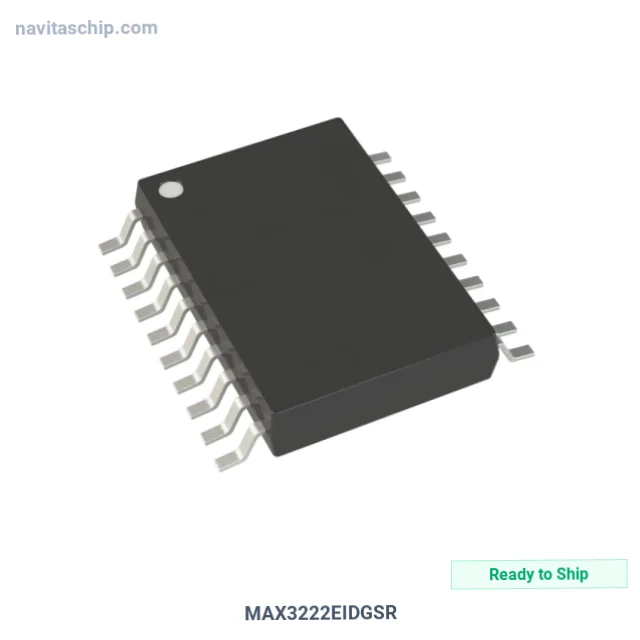

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MAX3222EIDGSR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-25881333 |
| Description | 3- TO 5.5-V DUAL CHANNEL 500KBPS |
| Spec | 20-TFSOP (0.118", 3.00mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Transceiver |
| Protocol | RS232 |
| Number of Drivers/Receivers | 2/2 |
| Duplex | Full |
| Receiver Hysteresis | 300 mV |
| Data Rate | 500kbps |
| Voltage - Supply | 3V ~ 3.6V, 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-VSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments MAX3222EIDGSR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MAX3222EIDGSR is an Interface Driver Receiver Transceiver IC manufactured by Texas Instruments (TI). 3- to 5.5-V Dual Channel 500kbps, housed in a compact 20-VSSOP package, with 3V ~ 3.6V, 4.5V ~ 5.5V supply voltage. Originally developed by Maxim Integrated.
Key Technical Specifications
- Supply Voltage: 3V ~ 3.6V, 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 20-TFSOP (0.118", 3.00mm Width)
- Device Package: 20-VSSOP
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
