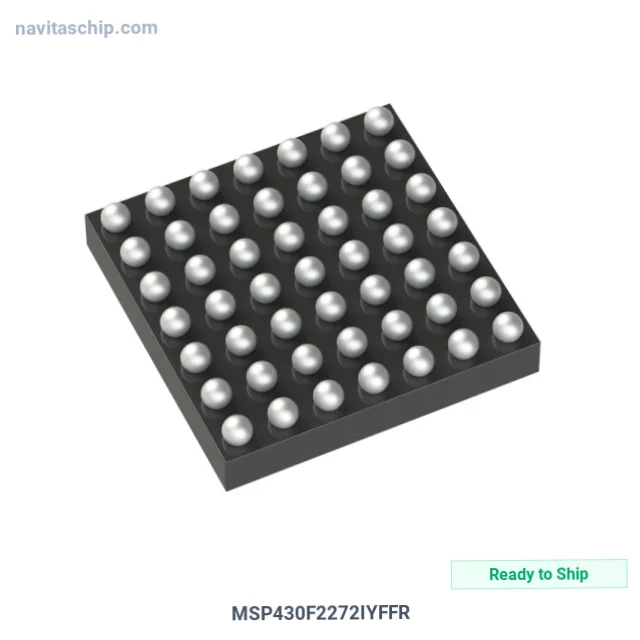

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MSP430F2272IYFFR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | N96109185 |
| Description | IC MCU 16BIT 32KB FLASH 49DSBGA |
| Spec | 49-UFBGA, DSBGA |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Core Processor | MSP430 CPU16 |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, LINbus, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 32 |
| Program Memory Size | 32KB (32K x 8 + 256B) |
| Program Memory Type | FLASH |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 12x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 49-DSBGA (2.8x2.8) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments MSP430F2272IYFFR Datasheet |
| Product Image | View Large Image |
Environmental Compliance
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
Product Description
The MSP430F2272IYFFR is a Microcontroller (MCU) manufactured by Texas Instruments (TI). Integrated Circuit Microcontroller 16bit 32kb Flash Memory in 49-Pin BGA Package, housed in a compact 49-DSBGA (2.8x2.8) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 49-UFBGA, DSBGA
- Device Package: 49-DSBGA (2.8x2.8)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
