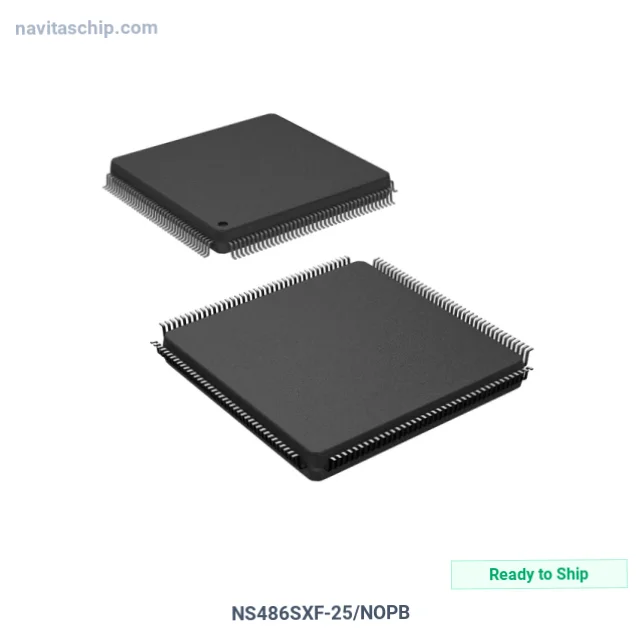

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | NS486SXF-25/NOPB |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-367808 |
| Description | IC MPU INTEL486 SX 25MHZ 160QFP |
| Spec | 160-BFQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Active |
| Core Processor | Intel486 SX |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 25MHz |
| RAM Controllers | DRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | LCD |
| Voltage - I/O | 3.3V, 5.0V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 160-QFP (28x28) |
| Additional Interfaces | Access.bus, IrDA, Microwire, PCMCIA, UART |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments NS486SXF-25/NOPB Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The NS486SXF-25/NOPB is an Embedded Processor manufactured by Texas Instruments (TI). Integrated Circuit Microprocessor Intel486 Sx operating at 25MHz in 160-Pin QFP Package, housed in a compact 160-QFP (28x28) package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Surface Mount
- Package: 160-BFQFP
- Device Package: 160-QFP (28x28)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
