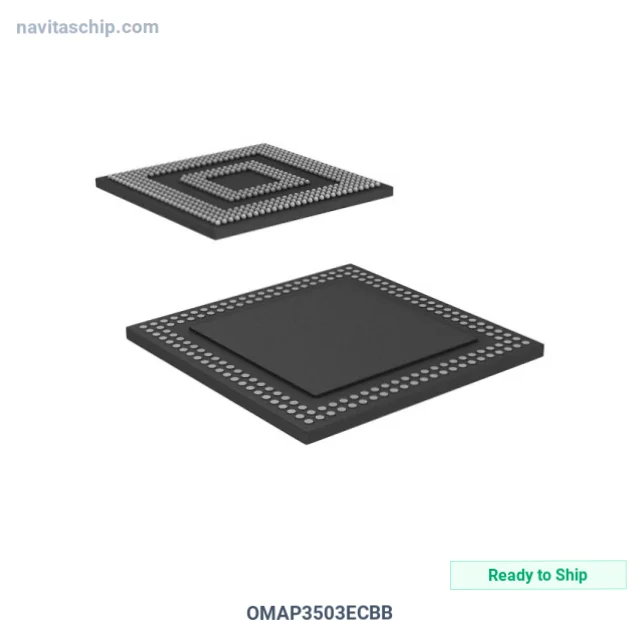

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | OMAP3503ECBB |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-3182136 |
| Description | IC MPU OMAP-35XX 600MHZ 515FCBGA |
| Spec | 515-VFBGA, FCBGA |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | Texas Instruments |
| Package | Bulk |
| Product Status | Active |
| Core Processor | ARM® Cortex®-A8 |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 600MHz |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR |
| Graphics Acceleration | No |
| Display & Interface Controllers | LCD |
| USB | USB 1.x (3), USB 2.0 (1) |
| Voltage - I/O | 1.8V, 3.0V |
| Operating Temperature | 0°C ~ 90°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 515-POP-FCBGA (12x12) |
| Additional Interfaces | HDQ/1-Wire, I2C, McBSP, McSPI, MMC/SD/SDIO, UART |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments OMAP3503ECBB Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The OMAP3503ECBB is an Embedded Processor manufactured by Texas Instruments (TI). Integrated Circuit Microprocessor Omap-35xx operating at 600MHz in 515-Pin BGA Package, housed in a compact 515-POP-FCBGA (12x12) package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 90°C (TJ)
- Mounting: Surface Mount
- Package: 515-VFBGA, FCBGA
- Device Package: 515-POP-FCBGA (12x12)
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
