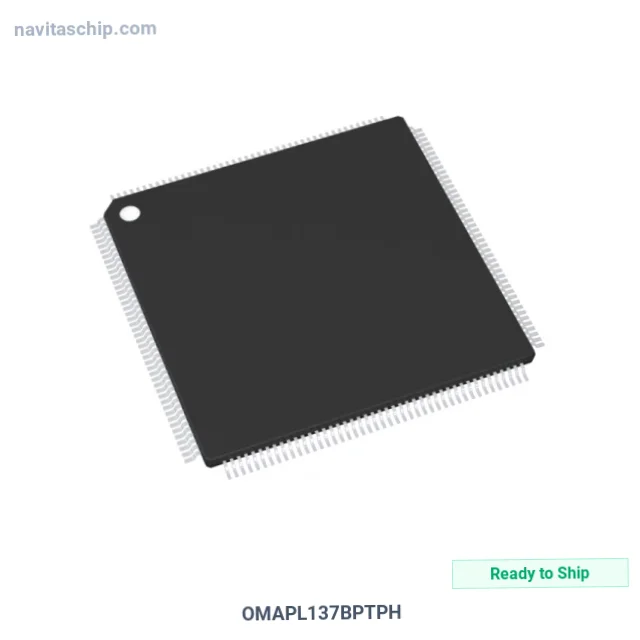

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | OMAPL137BPTPH |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-3431191 |
| Description | IC MPU OMAP-L1X 300MHZ 176HLQFP |
| Spec | 176-LQFP Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM926EJ-S |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 300MHz |
| Co-Processors/DSP | Signal Processing; C674x, System Control; CP15 |
| RAM Controllers | SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | LCD |
| Ethernet | 10/100Mbps (1) |
| USB | USB 1.1 + PHY (1), USB 2.0 + PHY (1) |
| Voltage - I/O | 1.8V, 3.3V |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-HLQFP (24x24) |
| Additional Interfaces | HPI, I2C, McASP, MMC/SD, SPI, UART |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments OMAPL137BPTPH Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The OMAPL137BPTPH is an Embedded Processor manufactured by Texas Instruments (TI). Integrated Circuit Microprocessor Omap-L1x operating at 300MHz 176hlqfp, housed in a compact 176-HLQFP (24x24) package.
Key Technical Specifications
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting: Surface Mount
- Package: 176-LQFP Exposed Pad
- Device Package: 176-HLQFP (24x24)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
