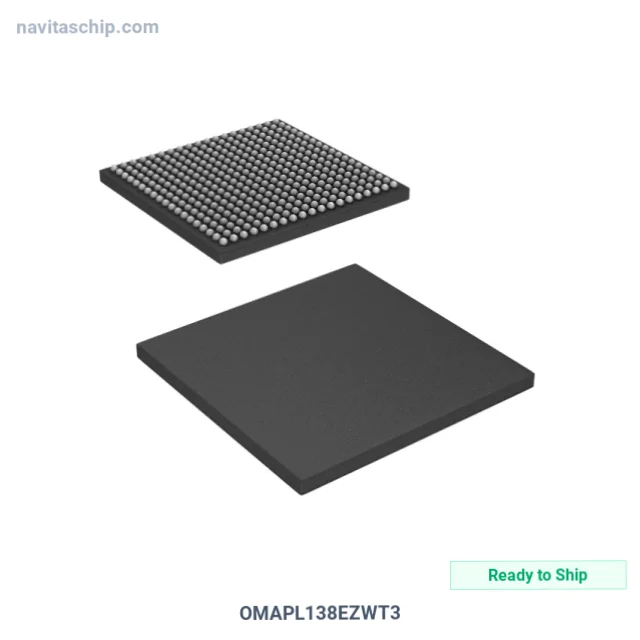

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | OMAPL138EZWT3 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-5017588 |
| Description | IC MPU OMAP-L1X 375MHZ 361NFBGA |
| Spec | 361-LFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM926EJ-S |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 375MHz |
| Co-Processors/DSP | Signal Processing; C674x, System Control; CP15 |
| RAM Controllers | SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | LCD |
| Ethernet | 10/100Mbps (1) |
| SATA | SATA 3Gbps (1) |
| USB | USB 1.1 + PHY (1), USB 2.0 + PHY (1) |
| Voltage - I/O | 1.8V, 3.3V |
| Operating Temperature | 0°C ~ 90°C (TJ) |
| Security Features | Boot Security, Cryptography |
| Mounting Type | Surface Mount |
| Supplier Device Package | 361-NFBGA (16x16) |
| Additional Interfaces | HPI, I2C, McASP, McBSP, MMC/SD, SPI, UART |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments OMAPL138EZWT3 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The OMAPL138EZWT3 is an Embedded Processor manufactured by Texas Instruments (TI). Integrated Circuit Microprocessor Omap-L1x operating at 375MHz in 361-Pin BGA Package, housed in a compact 361-NFBGA (16x16) package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 90°C (TJ)
- Mounting: Surface Mount
- Package: 361-LFBGA
- Device Package: 361-NFBGA (16x16)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
