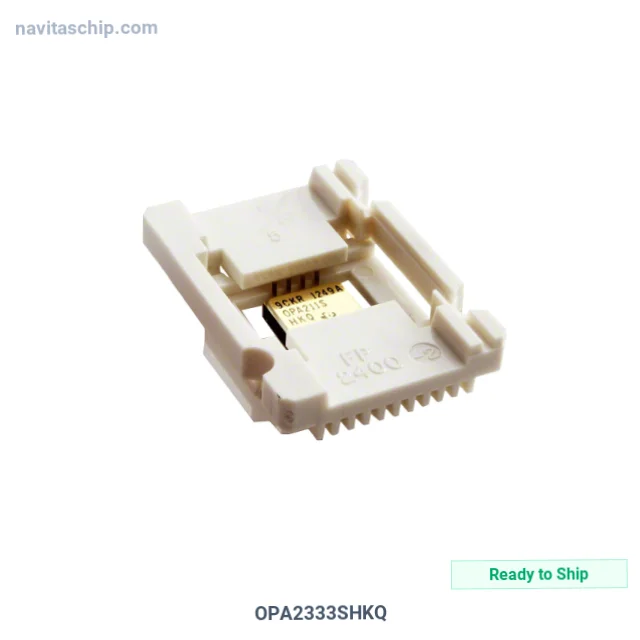

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | OPA2333SHKQ |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-3431206 |
| Description | IC OPAMP ZERO-DRIFT 2 CIRC 8CFP |
| Spec | 8-CSOIC (0.220", 5.65mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Active |
| Amplifier Type | CMOS, Zero-Drift |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.16V/µs |
| Gain Bandwidth Product | 350 kHz |
| Current - Input Bias | 70 pA |
| Voltage - Input Offset | 2 µV |
| Current - Supply | 17µA (x2 Channels) |
| Current - Output / Channel | 5 mA |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -55°C ~ 210°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-CFP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments OPA2333SHKQ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The OPA2333SHKQ is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Integrated Circuit Operational Amplifier Zero-Drift 2 Circ 8cfp, housed in a compact 8-CFP package. Automotive qualified (AEC-Q100/Q101).
Struggling with legacy Intersil ICL7650, ICL7652 and HA-series chopper-stabilized amplifier sourcing for installed industrial control systems? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -55°C ~ 210°C
- Mounting: Surface Mount
- Package: 8-CSOIC (0.220", 5.65mm Width)
- Device Package: 8-CFP
- RoHS Compliant
Applications
Perfect for:
- embedded systems
- high-side and low-side current sensing for lithium battery packs, BMS and brushless motor phase monitoring
- bridge sensor signal conditioning for strain gauge, pressure transducer, load cell and Wheatstone bridge readout
Why Choose NavitasChip for OPA2333SHKQ?
NavitasChip offers obsolete part procurement when authorized distributors discontinue support for the OPA2333SHKQ and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Reliable supplier of OPA2333SHKQ for the South Korea and Singapore markets.
OPA2333SHKQ - Upload your BOM for fast pricing.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
