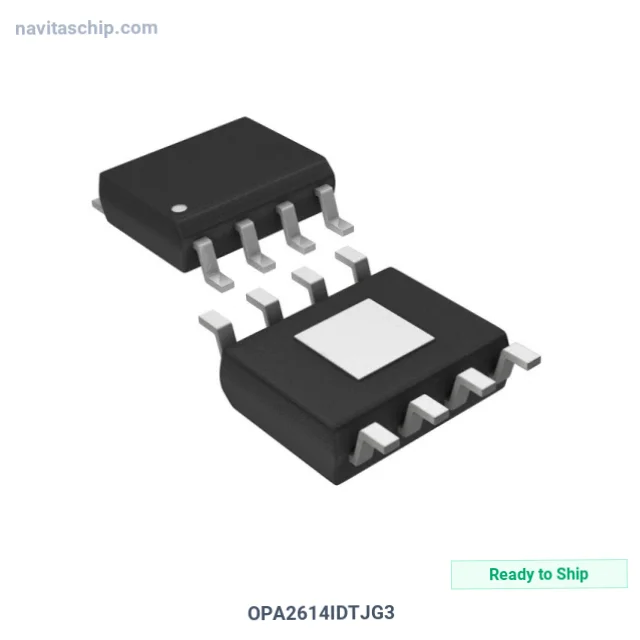

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | OPA2614IDTJG3 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-1572301 |
| Description | IC VOLTAGE FEEDBACK 2 CIRC 8HSOP |
| Spec | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Obsolete |
| Amplifier Type | Voltage Feedback |
| Number of Circuits | 2 |
| Output Type | Differential |
| Slew Rate | 145V/µs |
| Gain Bandwidth Product | 290 MHz |
| -3db Bandwidth | 180 MHz |
| Current - Input Bias | 6 µA |
| Voltage - Input Offset | 200 µV |
| Current - Supply | 12mA (x2 Channels) |
| Current - Output / Channel | 350 mA |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 12 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-HSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments OPA2614IDTJG3 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The OPA2614IDTJG3 is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Integrated Circuit Voltage Feedback 2 Circ 8hsop, housed in a compact 8-HSOP package.
Key Technical Specifications
- Output Type: Differential
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Device Package: 8-HSOP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
