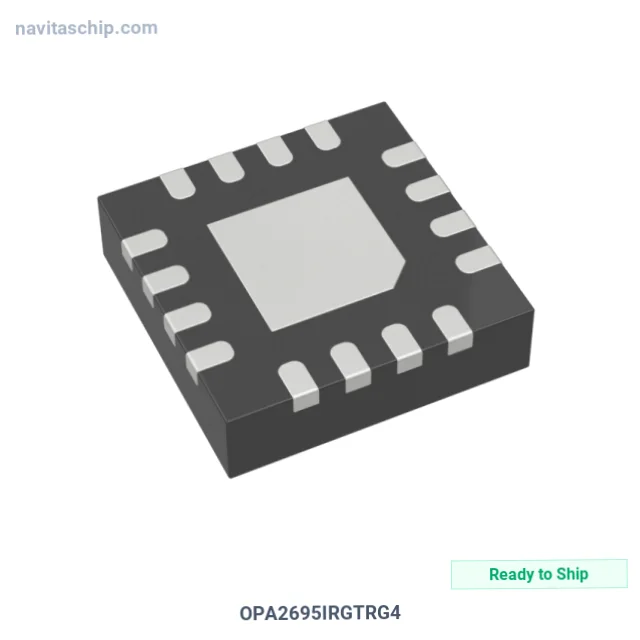

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | OPA2695IRGTRG4 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-2047481 |
| Description | IC OPAMP CFA 2 CIRCUIT 16VQFN |
| Spec | 16-VFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Discontinued at |
| Amplifier Type | Current Feedback |
| Number of Circuits | 2 |
| Output Type | Differential |
| Slew Rate | 2900V/µs |
| Gain Bandwidth Product | 1.1 GHz |
| -3db Bandwidth | 1.1 GHz |
| Current - Input Bias | 20 µA |
| Voltage - Input Offset | 300 µV |
| Current - Supply | 25.8mA (x2 Channels) |
| Current - Output / Channel | 120 mA |
| Voltage - Supply Span (Min) | 3.5 V |
| Voltage - Supply Span (Max) | 12 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-VQFN (3x3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments OPA2695IRGTRG4 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The OPA2695IRGTRG4 is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Integrated Circuit Operational Amplifier Cfa 2 Circuit 16vqfn, housed in a compact 16-VQFN (3x3) package.
Key Technical Specifications
- Output Type: Differential
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 16-VFQFN Exposed Pad
- Device Package: 16-VQFN (3x3)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
