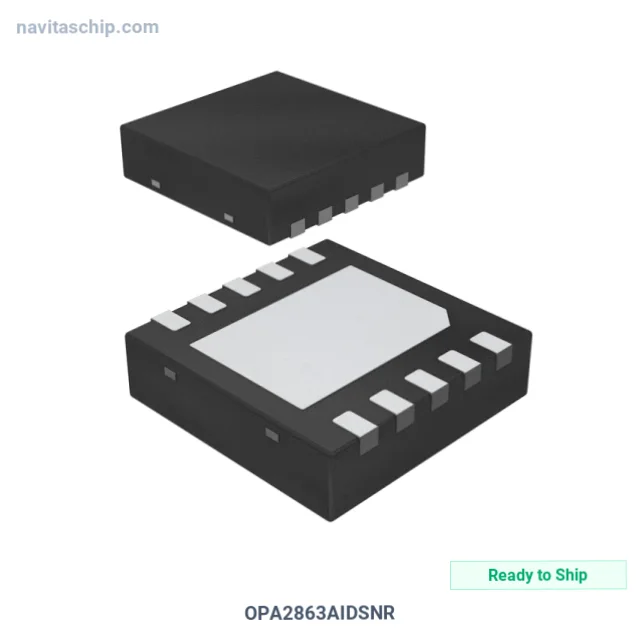

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | OPA2863AIDSNR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-17748393 |
| Description | DUAL, HIGH-PRECISION, LOW-POWER, |
| Spec | 10-UFDFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Voltage Feedback |
| Number of Circuits | 2 |
| Output Type | Push-Pull, Rail-to-Rail |
| Slew Rate | 100V/µs |
| Gain Bandwidth Product | 50 MHz |
| -3db Bandwidth | 105 MHz |
| Current - Input Bias | 300 nA |
| Voltage - Input Offset | 10 µV |
| Current - Supply | 800µA (x2 Channels) |
| Current - Output / Channel | 45 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 12.6 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 10-SON (3x3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments OPA2863AIDSNR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The OPA2863AIDSNR is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Dual, housed in a compact 10-SON (3x3) package.
Key Technical Specifications
- Output Type: Push-Pull, Rail-to-Rail
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 10-UFDFN Exposed Pad
- Device Package: 10-SON (3x3)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
