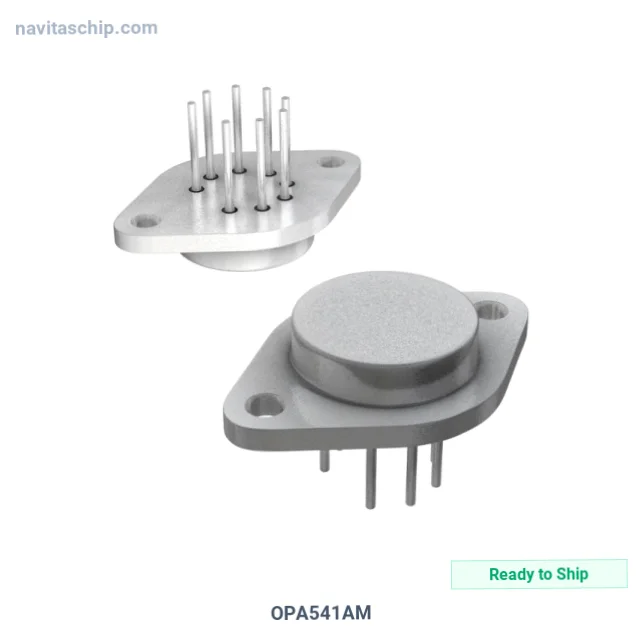

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | OPA541AM |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-251156 |
| Description | IC POWER 1 CIRCUIT TO3-8 |
| Spec | TO-3-8 |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Not For New Designs |
| Amplifier Type | Power |
| Number of Circuits | 1 |
| Slew Rate | 10V/µs |
| Gain Bandwidth Product | 1.6 MHz |
| Current - Input Bias | 4 pA |
| Voltage - Input Offset | 2 mV |
| Current - Supply | 20mA |
| Current - Output / Channel | 10 A |
| Voltage - Supply Span (Min) | 20 V |
| Voltage - Supply Span (Max) | 70 V |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-3-8 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments OPA541AM Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The OPA541AM is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Integrated Circuit Power 1 Circuit in 8-Pin To3 Package, housed in a compact TO-3-8 package.
Key Technical Specifications
- Operating Temperature: -25°C ~ 85°C
- Mounting: Through Hole
- Package: TO-3-8
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
