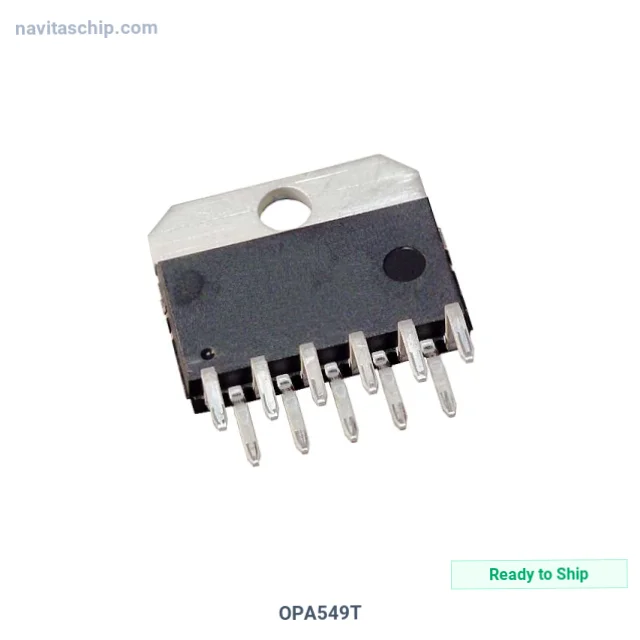

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | OPA549T |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-307860 |
| Description | IC POWER 1 CIRCUIT TO220-11 |
| Spec | TO-220-11 Formed Leads |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Active |
| Amplifier Type | Power |
| Number of Circuits | 1 |
| Slew Rate | 9V/µs |
| Gain Bandwidth Product | 900 kHz |
| Current - Input Bias | 100 nA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 26mA |
| Current - Output / Channel | 10 A |
| Voltage - Supply Span (Min) | 8 V |
| Voltage - Supply Span (Max) | 60 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220-11 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments OPA549T Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The OPA549T is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Integrated Circuit Power 1 Circuit in 11-Pin To220 Package, housed in a compact TO-220-11 package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Through Hole
- Package: TO-220-11 Formed Leads
- Device Package: TO-220-11
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
