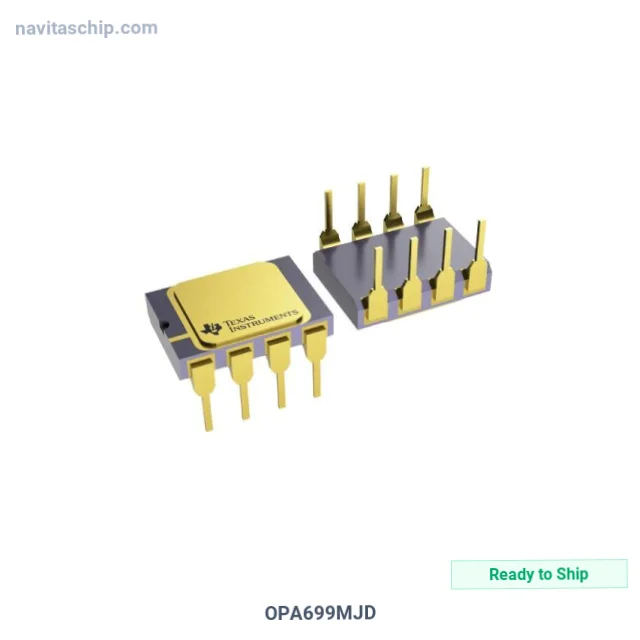

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | OPA699MJD |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-18177250 |
| Description | GAIN +4 STABLE WIDEBAND VOLTAGE |
| Spec | 8-CDIP (0.300", 7.62mm) Window |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Active |
| Amplifier Type | Limiting |
| Number of Circuits | 1 |
| Output Type | Single-Ended |
| Slew Rate | 1400V/µs |
| Gain Bandwidth Product | 1 GHz |
| -3db Bandwidth | 86 MHz |
| Current - Input Bias | 3 µA |
| Voltage - Input Offset | 1.5 mV |
| Current - Supply | 15.5mA |
| Current - Output / Channel | 165 mA |
| Voltage - Supply Span (Max) | 12 V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 8-CDIP SB |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments OPA699MJD Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The OPA699MJD is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Gain +4 Stable Wideband Voltage, housed in a compact 8-CDIP SB package.
Key Technical Specifications
- Output Type: Single-Ended
- Operating Temperature: -55°C ~ 125°C
- Mounting: Through Hole
- Package: 8-CDIP (0.300", 7.62mm) Window
- Device Package: 8-CDIP SB
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
