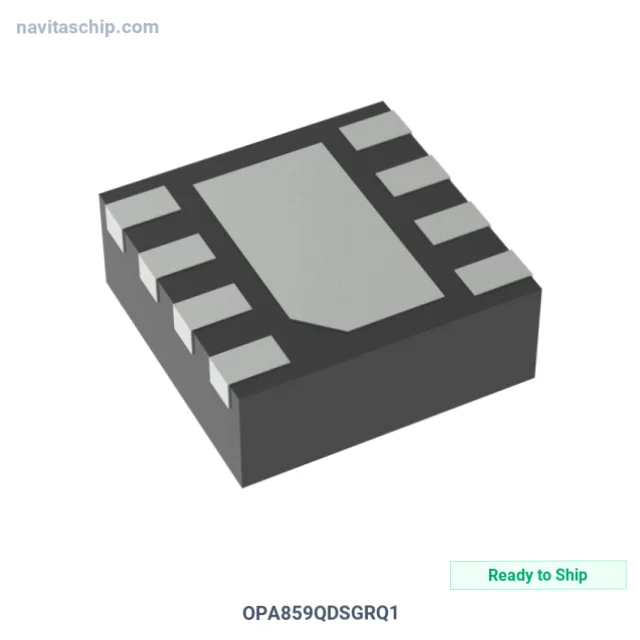

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | OPA859QDSGRQ1 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-14123988 |
| Description | IC OPAMP JFET 1 CIRCUIT 8WSON |
| Spec | 8-WFDFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | J-FET |
| Number of Circuits | 1 |
| Output Type | Single-Ended |
| Slew Rate | 1150V/µs |
| Gain Bandwidth Product | 900 MHz |
| -3db Bandwidth | 1.8 GHz |
| Current - Input Bias | 0.5 pA |
| Voltage - Input Offset | 900 µV |
| Current - Supply | 21mA |
| Current - Output / Channel | 105 mA |
| Voltage - Supply Span (Min) | 3.3 V |
| Voltage - Supply Span (Max) | 5.25 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-WSON (2x2) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments OPA859QDSGRQ1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The OPA859QDSGRQ1 is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Integrated Circuit Operational Amplifier JFET 1 Circuit in 8-Pin WSON Package, housed in a compact 8-WSON (2x2) package.
Key Technical Specifications
- Output Type: Single-Ended
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 8-WFDFN Exposed Pad
- Device Package: 8-WSON (2x2)
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
