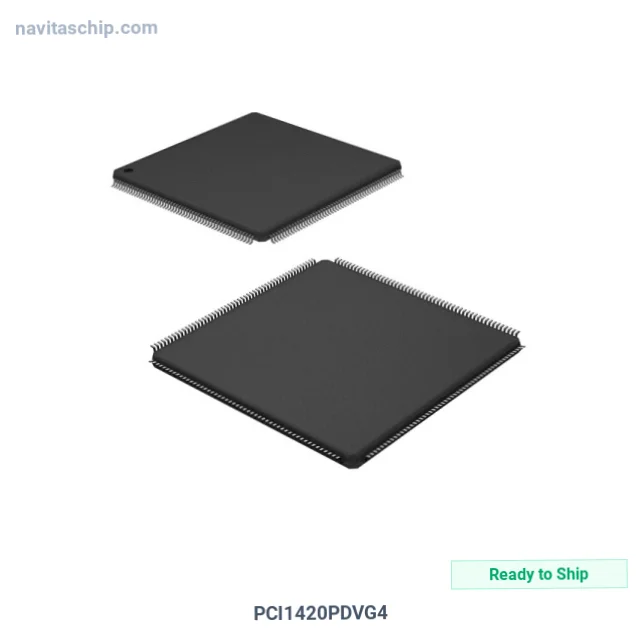

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PCI1420PDVG4 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-1573162 |
| Description | IC PC CARD CONTROLLER 208-LQFP |
| Spec | 208-LQFP |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | Texas Instruments |
| Package | Bulk |
| Product Status | Discontinued at |
| Protocol | PCI CardBus |
| Function | Controller |
| Interface | PCI |
| Voltage - Supply | 3.3V, 5V |
| Supplier Device Package | 208-QFP (28x28) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments PCI1420PDVG4 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PCI1420PDVG4 is an Interface Controller IC manufactured by Texas Instruments (TI). Integrated Circuit Pc Card Controller in 208-Pin LQFP Package, housed in a compact 208-QFP (28x28) package, with 3.3V, 5V supply voltage.
Key Technical Specifications
- Supply Voltage: 3.3V, 5V
- Interface: PCI
- Package: 208-LQFP
- Device Package: 208-QFP (28x28)
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
