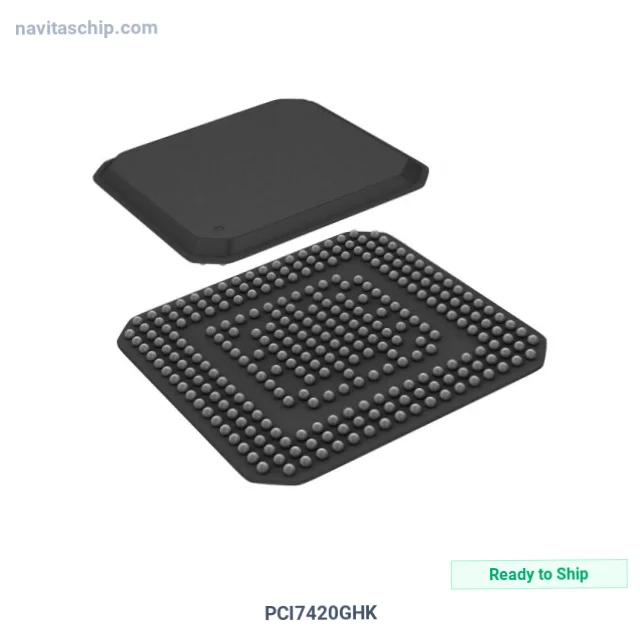

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PCI7420GHK |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-568151 |
| Description | IC CONTROLLER PCI CARD 288LFBGA |
| Spec | 288-LFBGA |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Obsolete |
| Protocol | PCI CardBus |
| Function | Controller |
| Interface | PCI |
| Standards | IEEE 1394a-2000, OHCI |
| Voltage - Supply | 3.3V, 5V |
| Supplier Device Package | 288-BGA Microstar (16x16) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments PCI7420GHK Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PCI7420GHK is an Interface Controller IC manufactured by Texas Instruments (TI). Integrated Circuit Controller Pci Card in 288-Pin BGA Package, housed in a compact 288-BGA Microstar (16x16) package, with 3.3V, 5V supply voltage.
Key Technical Specifications
- Supply Voltage: 3.3V, 5V
- Interface: PCI
- Package: 288-LFBGA
- Device Package: 288-BGA Microstar (16x16)
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
