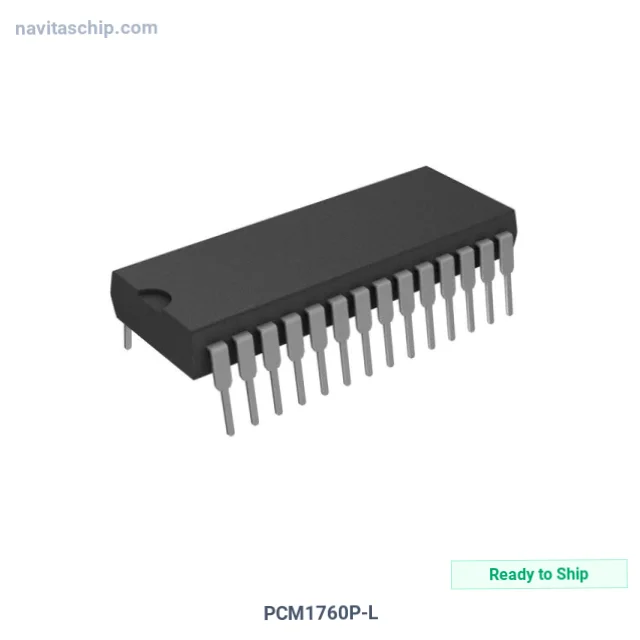

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PCM1760P-L |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-301414 |
| Description | IC ADC 20BIT SIGMA-DELTA 28DIP |
| Spec | 28-DIP (0.600", 15.24mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Obsolete |
| Number of Bits | 20 |
| Sampling Rate (Per Second) | 48k |
| Number of Inputs | 2 |
| Input Type | Single Ended |
| Data Interface | Serial |
| Configuration | ADC |
| Ratio - S/H | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | ±5V |
| Features | Simultaneous Sampling |
| Operating Temperature | 0°C ~ 70°C |
| Supplier Device Package | 28-PDIP |
| Mounting Type | Through Hole |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments PCM1760P-L Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PCM1760P-L is an Analog-to-Digital Converter (ADC) manufactured by Texas Instruments (TI). Integrated Circuit Analog-To-Digital Converter 20bit Sigma-Delta in 28-Pin DIP Package, housed in a compact 28-PDIP package.
Don't let quarterly cost-down targets slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C
- Mounting: Through Hole
- Package: 28-DIP (0.600", 15.24mm)
- Device Package: 28-PDIP
- RoHS Compliant
