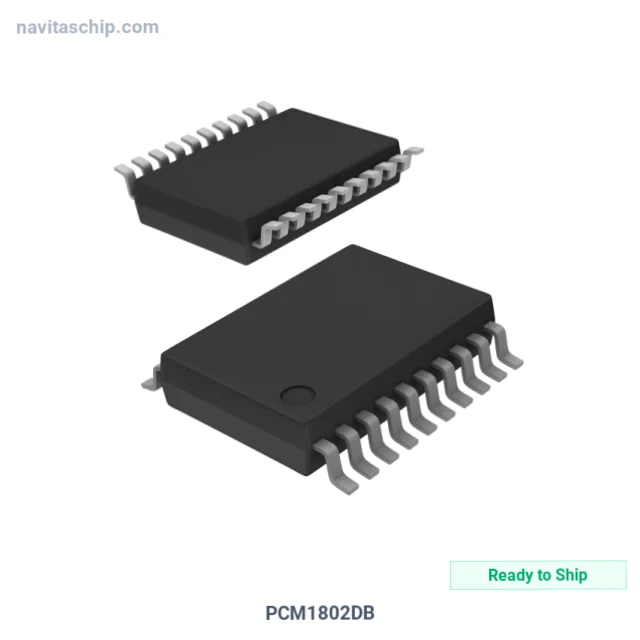

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PCM1802DB |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-431984 |
| Description | IC ADC/AUDIO 24BIT 96K 20SSOP |
| Spec | 20-SSOP (0.209", 5.30mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Active |
| Type | ADC, Audio |
| Number of Channels | 2 |
| Resolution (Bits) | 24 b |
| Sampling Rate (Per Second) | 96k |
| Data Interface | Serial |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 2.7V ~ 3.6V, 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-SSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments PCM1802DB Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PCM1802DB is an Audio Codec and Special-Purpose Data Converter IC manufactured by Texas Instruments (TI). Integrated Circuit Analog-To-Digital Converter/audio 24bit 96k in 20-Pin SSOP Package, housed in a compact 20-SSOP package, with 2.7V ~ 3.6V, 4.5V ~ 5.5V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.7V ~ 3.6V, 4.5V ~ 5.5V
- Channels: 2
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 20-SSOP (0.209", 5.30mm Width)
- Device Package: 20-SSOP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
