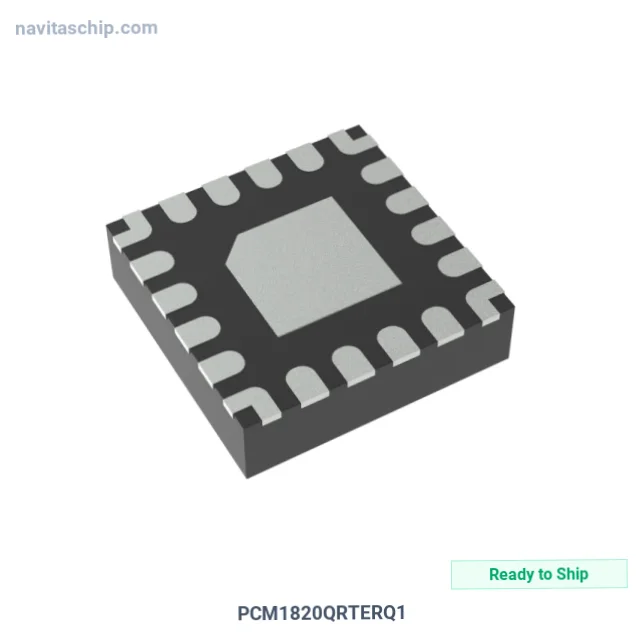

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PCM1820QRTERQ1 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-18182756 |
| Description | PROTOTYPE |
| Spec | 20-WFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | ADC, Audio |
| Number of Channels | 2 |
| Resolution (Bits) | 32 b |
| Sampling Rate (Per Second) | 8k ~ 192k |
| Data Interface | I2S, TDM |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 3.6V, 1.65V, 3V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Supplier Device Package | 20-WQFN (3x3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments PCM1820QRTERQ1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PCM1820QRTERQ1 is an Audio Codec and Special-Purpose Data Converter IC manufactured by Texas Instruments (TI). Prototype, housed in a compact 20-WQFN (3x3) package, with 3.6V, 1.65V, 3V supply voltage.
Key Technical Specifications
- Supply Voltage: 3.6V, 1.65V, 3V
- Channels: 2
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 20-WFQFN Exposed Pad
- Device Package: 20-WQFN (3x3)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
