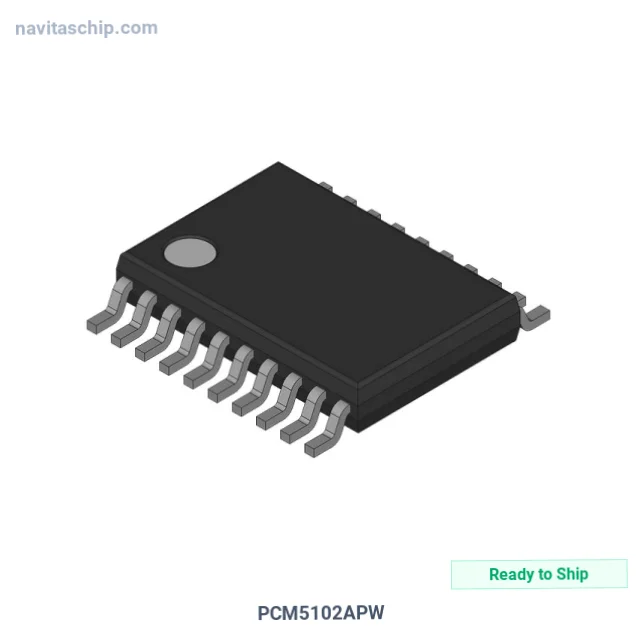

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PCM5102APW |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-3902495 |
| Description | IC DAC 16/24/32BIT 384K 20TSSOP |
| Spec | 20-TSSOP (0.173", 4.40mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Active |
| Type | DAC, Audio |
| Number of Channels | 2 |
| Resolution (Bits) | 16 b, 24 b, 32 b |
| Sampling Rate (Per Second) | 384k |
| Data Interface | PCM |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 1.65V ~ 3.46V |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments PCM5102APW Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PCM5102APW is an Audio Codec and Special-Purpose Data Converter IC manufactured by Texas Instruments (TI). Integrated Circuit Digital-To-Analog Converter 16/24/32bit 384k in 20-Pin TSSOP Package, housed in a compact 20-TSSOP package, with 1.65V ~ 3.46V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.65V ~ 3.46V
- Channels: 2
- Operating Temperature: -25°C ~ 85°C
- Mounting: Surface Mount
- Package: 20-TSSOP (0.173", 4.40mm Width)
- Device Package: 20-TSSOP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
