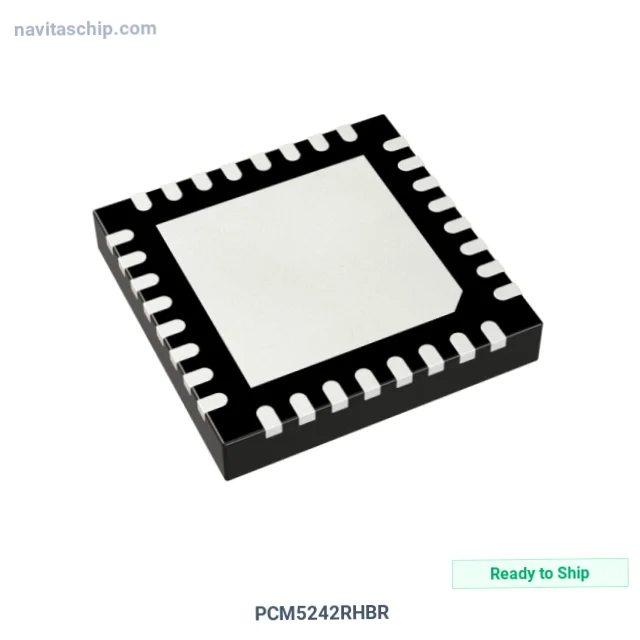

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PCM5242RHBR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-6571831 |
| Description | IC DAC/AUDIO 32BIT 384K 32VQFN |
| Spec | 32-VFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | DAC, Audio |
| Number of Channels | 2 |
| Resolution (Bits) | 32 b |
| Sampling Rate (Per Second) | 384k |
| Data Interface | I2S, PCM |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 1.65V ~ 1.95V, 3V ~ 3.46V |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-VQFN (5x5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments PCM5242RHBR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PCM5242RHBR is an Audio Codec and Special-Purpose Data Converter IC manufactured by Texas Instruments (TI). Integrated Circuit Digital-To-Analog Converter/audio 32bit 384k 32vqfn, housed in a compact 32-VQFN (5x5) package, with 1.65V ~ 1.95V, 3V ~ 3.46V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.65V ~ 1.95V, 3V ~ 3.46V
- Channels: 2
- Operating Temperature: -25°C ~ 85°C
- Mounting: Surface Mount
- Package: 32-VFQFN Exposed Pad
- Device Package: 32-VQFN (5x5)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
