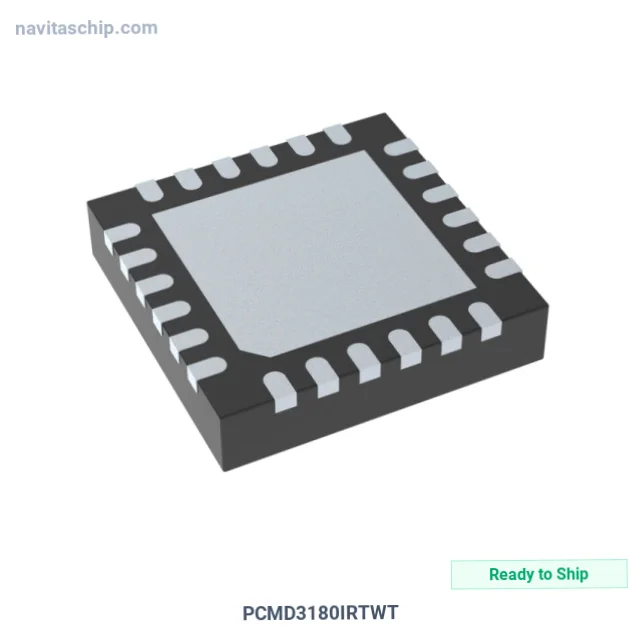

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PCMD3180IRTWT |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-12642206 |
| Description | 8-CHANNEL PDM INPUT TO TDM OR I2 |
| Spec | 24-WFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | PDM To TDM |
| Number of Channels | 8 |
| Sampling Rate (Per Second) | 768k |
| Data Interface | I2C, SPI |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 1.7V ~ 1.9V, 3V ~ 3.6V, 1.65V ~ 1.95V, 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-WQFN (4x4) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments PCMD3180IRTWT Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PCMD3180IRTWT is an Audio Codec and Special-Purpose Data Converter IC manufactured by Texas Instruments (TI). 8-Channel Pdm Input to Tdm or I2, housed in a compact 24-WQFN (4x4) package, with 1.7V ~ 1.9V, 3V ~ 3.6V, 1.65V ~ 1.95V, 3V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.7V ~ 1.9V, 3V ~ 3.6V, 1.65V ~ 1.95V, 3V ~ 3.6V
- Channels: 8
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 24-WFQFN Exposed Pad
- Device Package: 24-WQFN (4x4)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
