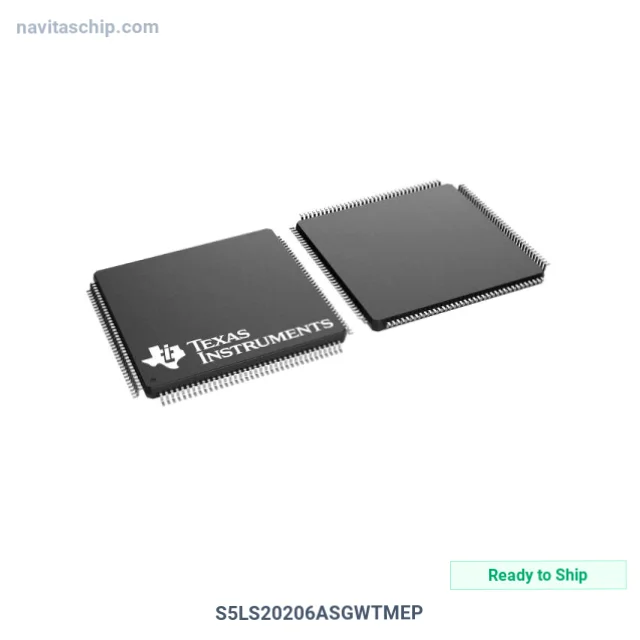

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | S5LS20206ASGWTMEP |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-3675175 |
| Description | IC MCU 16/32B 2MB FLASH 337NFBGA |
| Spec | 337-BGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM® Cortex®-R4F |
| Core Size | 16/32-Bit |
| Speed | 160MHz |
| Connectivity | CANbus, EBI/EMI, LINbus, SCI, SPI, UART/USART |
| Peripherals | DMA, POR |
| Number of I/O | 115 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| RAM Size | 160K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.35V ~ 1.65V |
| Data Converters | A/D 24x12b |
| Oscillator Type | External |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 337-NFBGA |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments S5LS20206ASGWTMEP Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The S5LS20206ASGWTMEP is a Microcontroller (MCU) manufactured by Texas Instruments (TI). Integrated Circuit Microcontroller 16/32b 2mb Flash Memory in 337-Pin BGA Package, housed in a compact 337-NFBGA package.
Key Technical Specifications
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 337-BGA
- Device Package: 337-NFBGA
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
