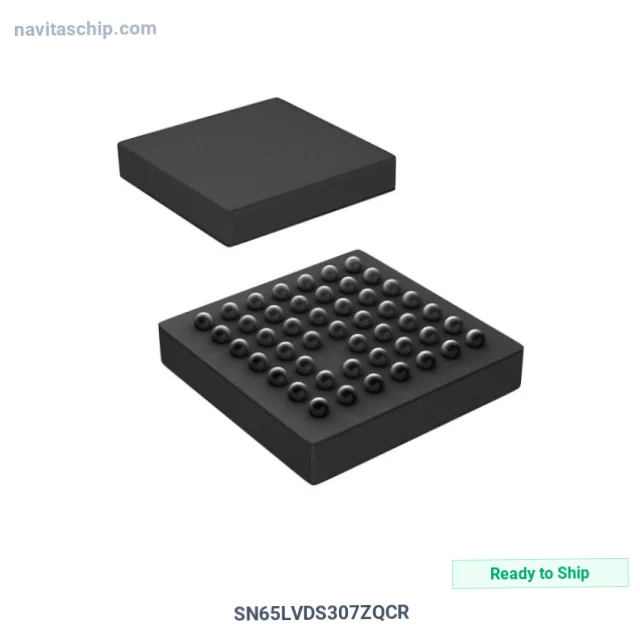

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SN65LVDS307ZQCR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-1628987 |
| Description | IC TXRX 48BGA MICROSTAR JUNIOR |
| Spec | 48-VFBGA |
| Package | Tape & Reel (TR) |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | Transceiver |
| Protocol | LVDS |
| Data Rate | 405Mbps |
| Voltage - Supply | 1.65V ~ 1.95V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-BGA MICROSTAR JUNIOR (4x4) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SN65LVDS307ZQCR is an Interface Driver Receiver Transceiver IC manufactured by Texas Instruments (TI). Integrated Circuit Transceiver in 48-Pin BGA Package Microstar Junior, housed in a compact 48-BGA MICROSTAR JUNIOR (4x4) package, with 1.65V ~ 1.95V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.65V ~ 1.95V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 48-VFBGA
- Device Package: 48-BGA MICROSTAR JUNIOR (4x4)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
