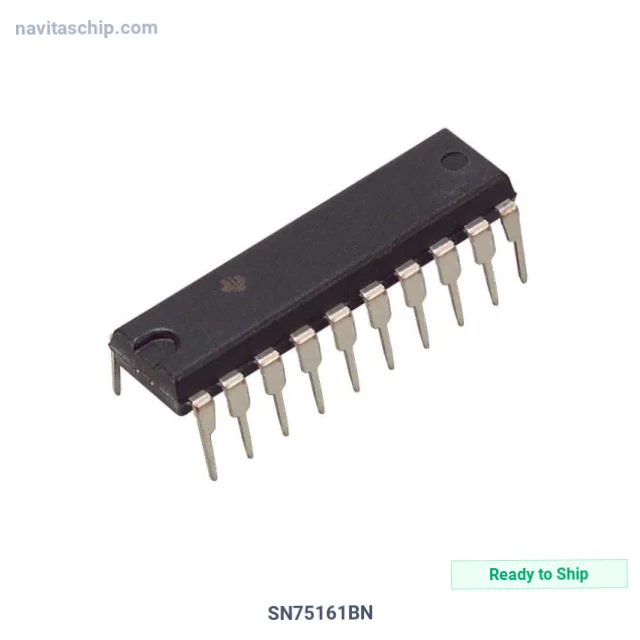

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SN75161BN |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-370219 |
| Description | IC TRANSCEIVER HALF 8/8 20PDIP |
| Spec | 20-DIP (0.300", 7.62mm) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Texas Instruments |
| Package | Bulk |
| Product Status | Active |
| Type | Transceiver |
| Protocol | IEEE 488 |
| Number of Drivers/Receivers | 8/8 |
| Duplex | Half |
| Receiver Hysteresis | 650 mV |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 20-PDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments SN75161BN Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SN75161BN is an Interface Driver Receiver Transceiver IC manufactured by Texas Instruments (TI). Integrated Circuit Transceiver Half 8/8 in 20-Pin PDIP Package, housed in a compact 20-PDIP package, with 4.75V ~ 5.25V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.75V ~ 5.25V
- Operating Temperature: 0°C ~ 70°C
- Mounting: Through Hole
- Package: 20-DIP (0.300", 7.62mm)
- Device Package: 20-PDIP
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
