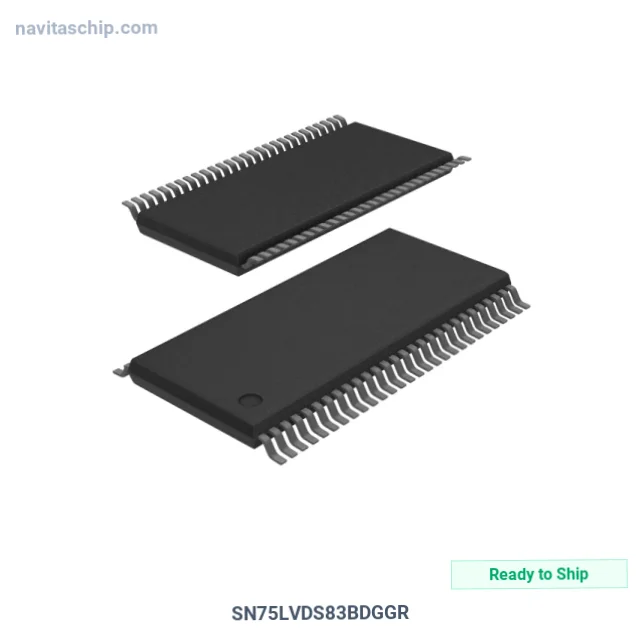

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SN75LVDS83BDGGR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-2071141 |
| Description | IC TRANSCEIVER 5/0 56TSSOP |
| Spec | 56-TFSOP (0.240", 6.10mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Driver |
| Protocol | LVDS |
| Number of Drivers/Receivers | 5/0 |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -10°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 56-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments SN75LVDS83BDGGR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SN75LVDS83BDGGR is an Interface Driver Receiver Transceiver IC manufactured by Texas Instruments (TI). Integrated Circuit Transceiver 5/0 in 56-Pin TSSOP Package, housed in a compact 56-TSSOP package, with 3V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 3V ~ 3.6V
- Operating Temperature: -10°C ~ 70°C
- Mounting: Surface Mount
- Package: 56-TFSOP (0.240", 6.10mm Width)
- Device Package: 56-TSSOP
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
