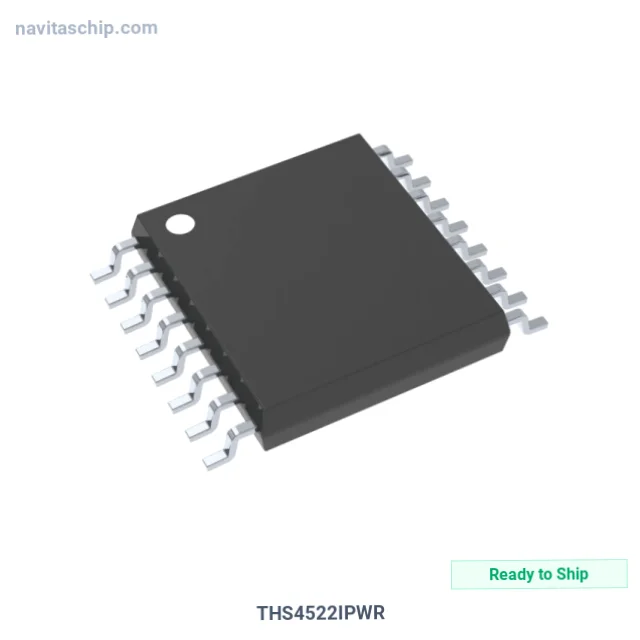

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | THS4522IPWR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-2047664 |
| Description | IC OPAMP DIFF 2 CIRCUIT 16TSSOP |
| Spec | 16-TSSOP (0.173", 4.40mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Differential |
| Number of Circuits | 2 |
| Output Type | Differential, Rail-to-Rail |
| Slew Rate | 600V/µs |
| Gain Bandwidth Product | 95 MHz |
| -3db Bandwidth | 145 MHz |
| Current - Input Bias | 700 nA |
| Voltage - Input Offset | 240 µV |
| Current - Supply | 1.14mA (x2 Channels) |
| Current - Output / Channel | 55 mA |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments THS4522IPWR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The THS4522IPWR is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Integrated Circuit Operational Amplifier Differential 2 Circuit in 16-Pin TSSOP Package, housed in a compact 16-TSSOP package.
Key Technical Specifications
- Output Type: Differential, Rail-to-Rail
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 16-TSSOP (0.173", 4.40mm Width)
- Device Package: 16-TSSOP
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
