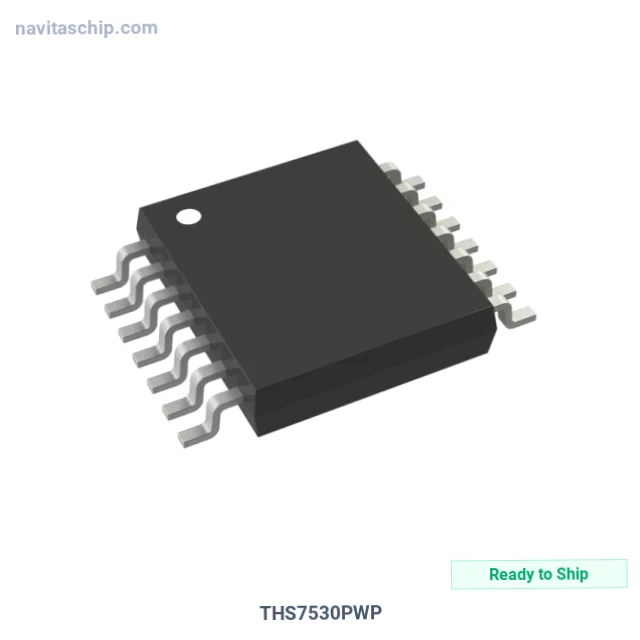

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | THS7530PWP |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-565508 |
| Description | IC VARIABLE GAIN 1 CIRC 14HTSSOP |
| Spec | 14-PowerTSSOP (0.173", 4.40mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Bulk |
| Product Status | Active |
| Amplifier Type | Variable Gain |
| Number of Circuits | 1 |
| Output Type | Differential |
| Slew Rate | 1250V/µs |
| -3db Bandwidth | 300 MHz |
| Current - Input Bias | 20 µA |
| Current - Supply | 40mA |
| Current - Output / Channel | 37 mA |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-HTSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments THS7530PWP Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The THS7530PWP is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Integrated Circuit Variable Gain 1 Circ 14htssop, housed in a compact 14-HTSSOP package.
Key Technical Specifications
- Output Type: Differential
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 14-PowerTSSOP (0.173", 4.40mm Width)
- Device Package: 14-HTSSOP
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
