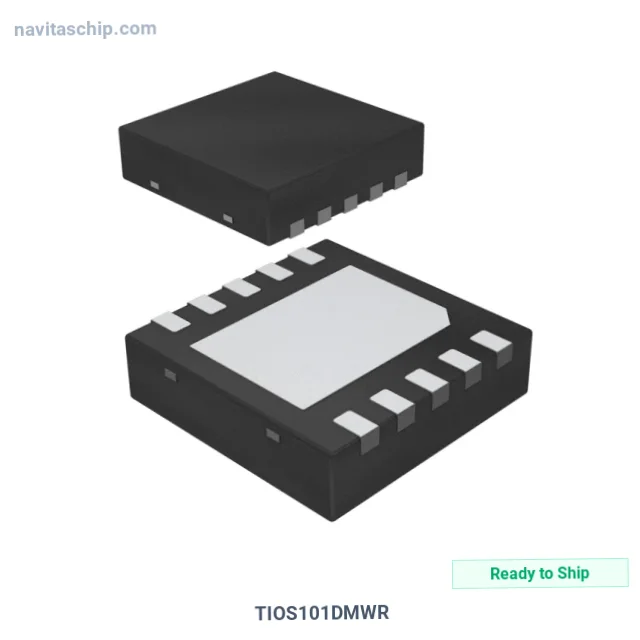

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TIOS101DMWR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-7561393 |
| Description | IC TRANSCEIVER 1/0 10VSON |
| Spec | 10-VFDFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Texas Instruments |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Driver |
| Number of Drivers/Receivers | 1/0 |
| Receiver Hysteresis | 100 mV |
| Data Rate | 250kbps |
| Voltage - Supply | 7V ~ 36V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 10-VSON (2.5x3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TIOS101DMWR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TIOS101DMWR is an Interface Driver Receiver Transceiver IC manufactured by Texas Instruments (TI). Integrated Circuit Transceiver 1/0 10vson, housed in a compact 10-VSON (2.5x3) package, with 7V ~ 36V supply voltage.
Key Technical Specifications
- Supply Voltage: 7V ~ 36V
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 10-VFDFN Exposed Pad
- Device Package: 10-VSON (2.5x3)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
