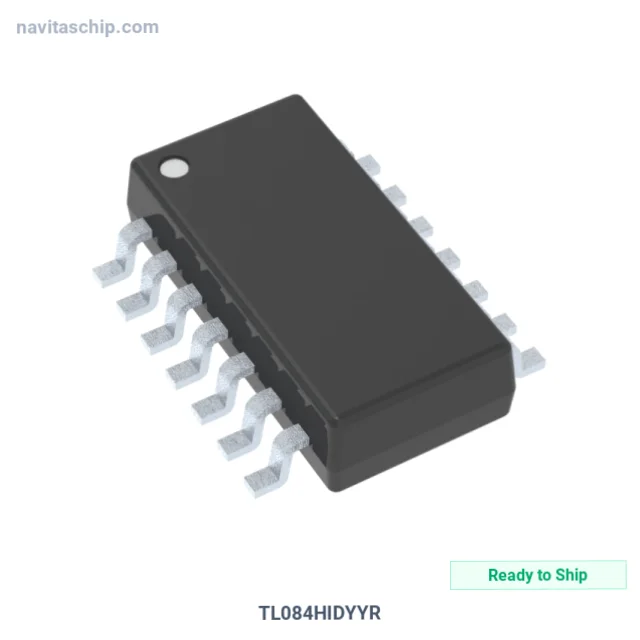

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TL084HIDYYR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-18159415 |
| Description | QUAD, 40-V, 5.25-MHZ, 4-MV OFFSE |
| Spec | SOT-23-14 Thin, SOT-23 Variant |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | J-FET |
| Number of Circuits | 4 |
| Output Type | Push-Pull |
| Slew Rate | 20V/µs |
| Gain Bandwidth Product | 5.25 MHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 937.5µA (x4 Channels) |
| Current - Output / Channel | 26 mA |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 40 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOT-23-THIN |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TL084HIDYYR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TL084HIDYYR is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Quad, housed in a compact 14-SOT-23-THIN package.
Key Technical Specifications
- Output Type: Push-Pull
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: SOT-23-14 Thin, SOT-23 Variant
- Device Package: 14-SOT-23-THIN
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
