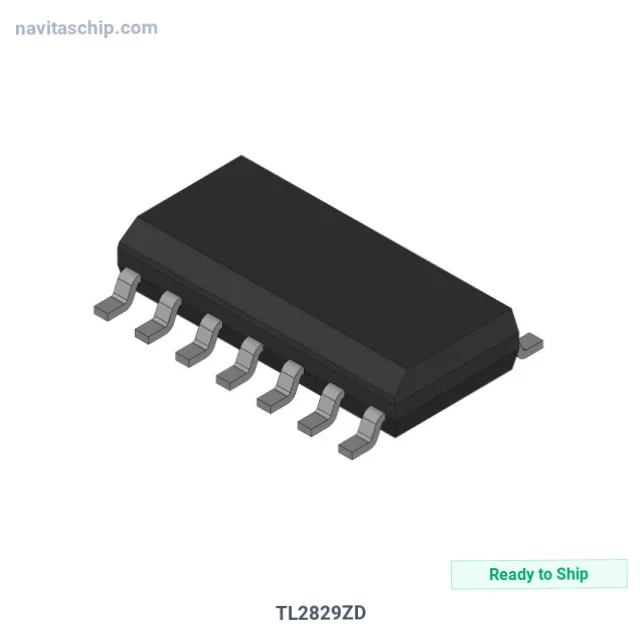

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TL2829ZD |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-12126250 |
| Description | IC OPAMP GP 4 CIRCUIT 14SO |
| Spec | 14-SOIC (0.209", 5.30mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Bulk |
| Product Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 4 |
| Slew Rate | 0.25V/µs |
| Gain Bandwidth Product | 400 kHz |
| Current - Input Bias | 15 nA |
| Voltage - Input Offset | 3 mV |
| Current - Supply | 800µA (x4 Channels) |
| Current - Output / Channel | 40 mA |
| Voltage - Supply Span (Min) | 4 V |
| Voltage - Supply Span (Max) | 30 V |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SO |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TL2829ZD Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TL2829ZD is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Integrated Circuit Operational Amplifier General Purpose 4 Circuit 14so, housed in a compact 14-SO package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 150°C (TA)
- Mounting: Surface Mount
- Package: 14-SOIC (0.209", 5.30mm Width)
- Device Package: 14-SO
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
