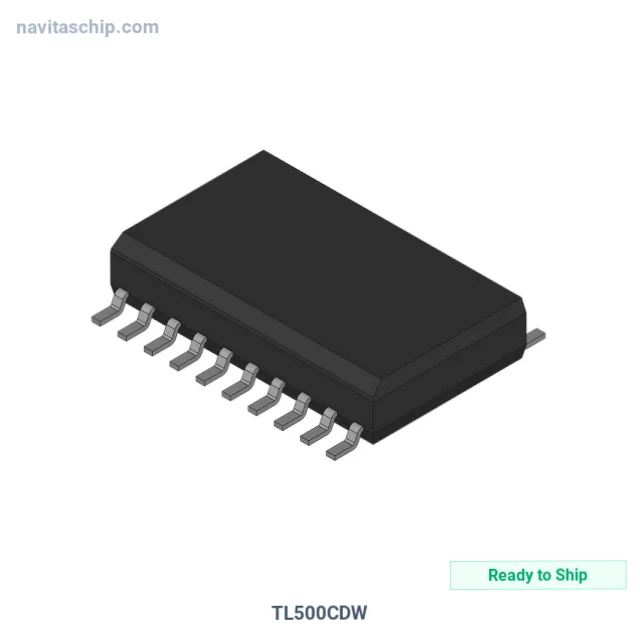

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TL500CDW |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-12133969 |
| Description | ANALOG CIRCUIT, 1 FUNC, PDSO20 |
| Spec | 20-SOIC (0.295", 7.50mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Texas Instruments |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 14 |
| Number of Inputs | 2 |
| Input Type | Single Ended |
| Configuration | ADC |
| Architecture | Dual Slope |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | -9V ~ 15V, 7V ~ 15V |
| Voltage - Supply, Digital | -9V ~ 15V, 7V ~ 15V |
| Operating Temperature | 0°C ~ 70°C |
| Supplier Device Package | 20-SOIC |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TL500CDW Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TL500CDW is an Analog-to-Digital Converter (ADC) manufactured by Texas Instruments (TI). Analog Circuit, housed in a compact 20-SOIC package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 20-SOIC (0.295", 7.50mm Width)
- Device Package: 20-SOIC
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
