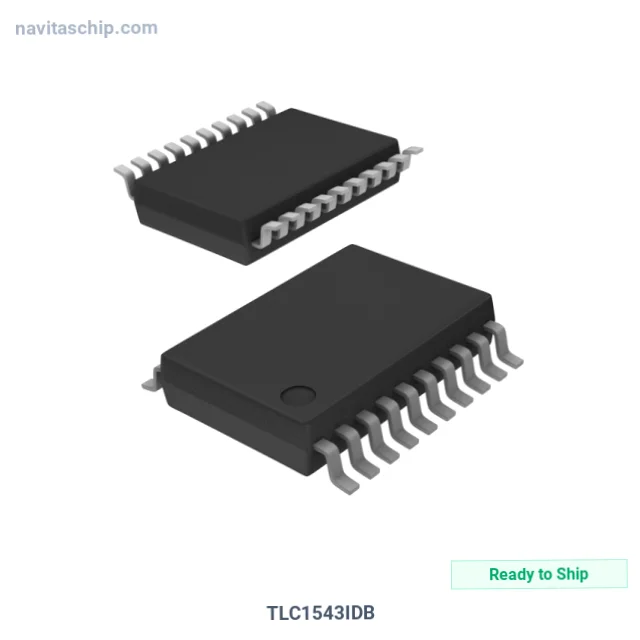

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TLC1543IDB |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-1675657 |
| Description | IC ADC 10BIT SAR 20SSOP |
| Spec | 20-SSOP (0.209", 5.30mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Texas Instruments |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 10 |
| Sampling Rate (Per Second) | 38k |
| Number of Inputs | 11 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | Selectable Address |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 20-SSOP |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TLC1543IDB Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TLC1543IDB is an Analog-to-Digital Converter (ADC) manufactured by Texas Instruments (TI). Integrated Circuit Analog-To-Digital Converter 10bit Sar in 20-Pin SSOP Package, housed in a compact 20-SSOP package.
Don't let end-of-life pipeline ADC transition without firmware or analog front-end redesign slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 20-SSOP (0.209", 5.30mm Width)
- Device Package: 20-SSOP
- RoHS Compliant
Applications
Commonly utilized in:
- SAR successive-approximation ADC for general-purpose precision conversion
- flash and subranging ADC for ultra-high-speed waveform digitization
- megasample-per-second (MSPS) sampling for communication and imaging front-ends
- industrial process control and sensor signal conditioning data paths
- communication waveform sampling and software-defined radio receivers
Why Choose NavitasChip for TLC1543IDB?
NavitasChip offers wholesale pricing advantages for the TLC1543IDB and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Bulk or Custom Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Need TLC1543IDB urgently? We maintain buffer stock across multiple global locations.
TLC1543IDB - Get instant quote online.
