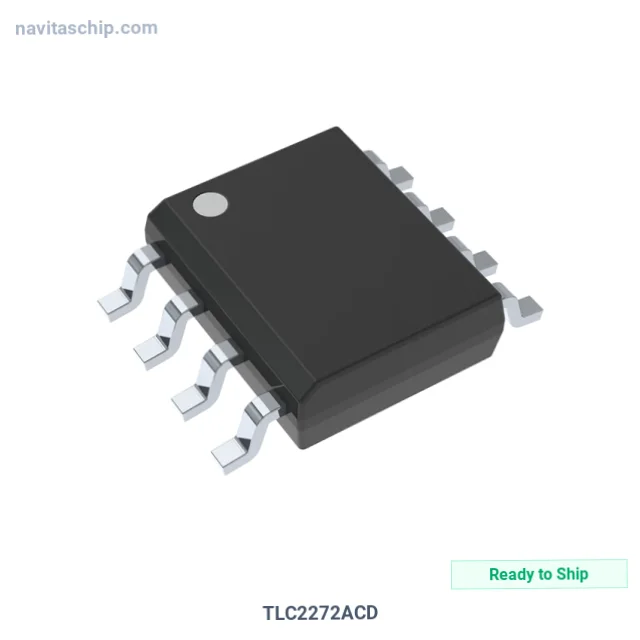

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TLC2272ACD |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-277455 |
| Description | IC CMOS 2 CIRCUIT 8SOIC |
| Spec | 8-SOIC (0.154", 3.90mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Active |
| Amplifier Type | CMOS |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 3.6V/µs |
| Gain Bandwidth Product | 2.25 MHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 300 µV |
| Current - Supply | 2.4mA (x2 Channels) |
| Current - Output / Channel | 50 mA |
| Voltage - Supply Span (Min) | 4.4 V |
| Voltage - Supply Span (Max) | 16 V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TLC2272ACD Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TLC2272ACD is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Integrated Circuit CMOS 2 Circuit in 8-Pin SOIC Package, housed in a compact 8-SOIC package.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Surface Mount
- Package: 8-SOIC (0.154", 3.90mm Width)
- Device Package: 8-SOIC
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
