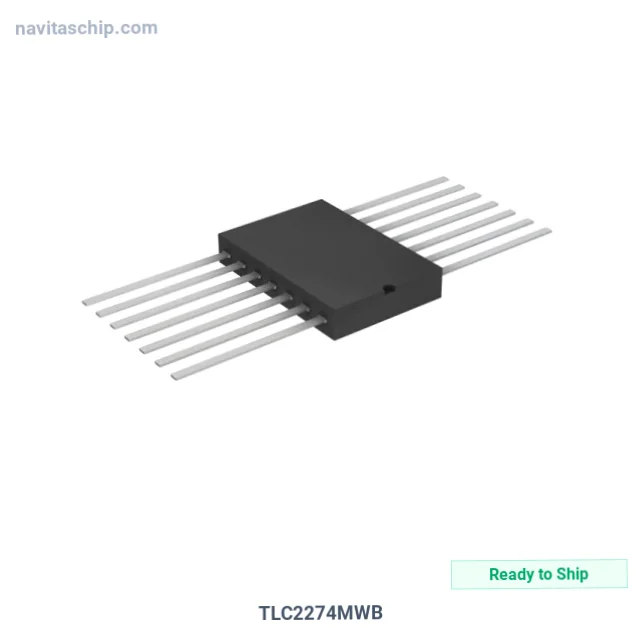

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TLC2274MWB |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-21520788 |
| Description | RAIL-TO-RAIL LOW NOISE ADVANCED |
| Spec | 14-CFlatPack |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 4 |
| Output Type | Push-Pull, Rail-to-Rail |
| Slew Rate | 3.6V/µs |
| Gain Bandwidth Product | 2.25 MHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 300 µV |
| Current - Supply | 4.8mA |
| Current - Output / Channel | 50 mA |
| Voltage - Supply Span (Min) | 4.4 V |
| Voltage - Supply Span (Max) | 16 V |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-CFP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TLC2274MWB Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TLC2274MWB is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Rail-To-Rail Low Noise Advanced, housed in a compact 14-CFP package.
Key Technical Specifications
- Output Type: Push-Pull, Rail-to-Rail
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 14-CFlatPack
- Device Package: 14-CFP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
