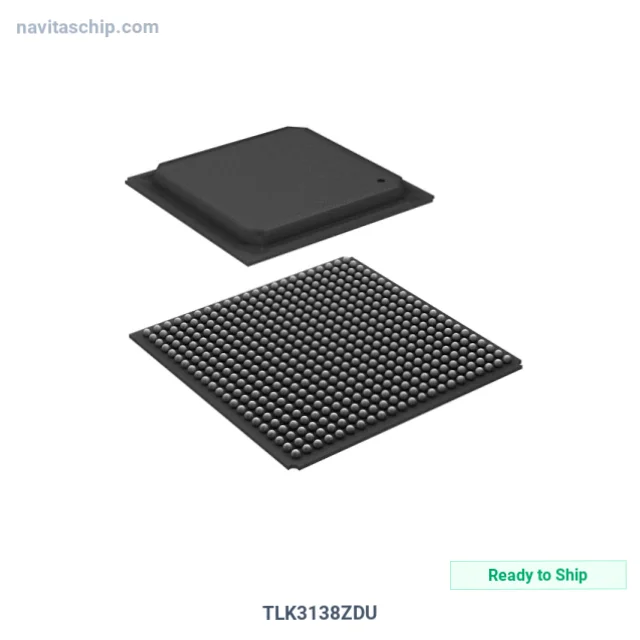

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TLK3138ZDU |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-1494000 |
| Description | IC TRANSCEIVER FULL 2/2 484BGA |
| Spec | 484-BBGA |
| Package | Tray |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Obsolete |
| Type | Transceiver |
| Protocol | Gigabit Ethernet |
| Number of Drivers/Receivers | 2/2 |
| Duplex | Full |
| Voltage - Supply | 1.14V ~ 1.26V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 484-BGA (23x23) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TLK3138ZDU is an Interface Driver Receiver Transceiver IC manufactured by Texas Instruments (TI). Integrated Circuit Transceiver Full 2/2 in 484-Pin BGA Package, housed in a compact 484-BGA (23x23) package, with 1.14V ~ 1.26V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.14V ~ 1.26V
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 484-BBGA
- Device Package: 484-BGA (23x23)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
