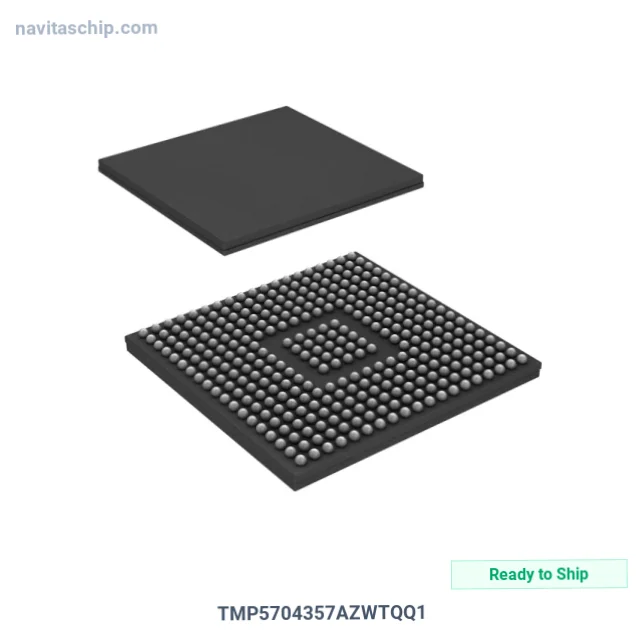

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TMP5704357AZWTQQ1 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-4866974 |
| Description | IC MCU 32BIT 4MB FLASH 337NFBGA |
| Spec | 337-LFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | ARM® Cortex®-R5F |
| Core Size | 32-Bit Dual-Core |
| Speed | 300MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, FlexRay, I2C, LINbus, MibSPI, SCI, SPI, UART/USART |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 145 |
| Program Memory Size | 4MB (4M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 128K x 8 |
| RAM Size | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 41x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 337-NFBGA (16x16) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TMP5704357AZWTQQ1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TMP5704357AZWTQQ1 is a Microcontroller (MCU) manufactured by Texas Instruments (TI). Integrated Circuit Microcontroller 32bit 4mb Flash Memory in 337-Pin BGA Package, housed in a compact 337-NFBGA (16x16) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 337-LFBGA
- Device Package: 337-NFBGA (16x16)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
