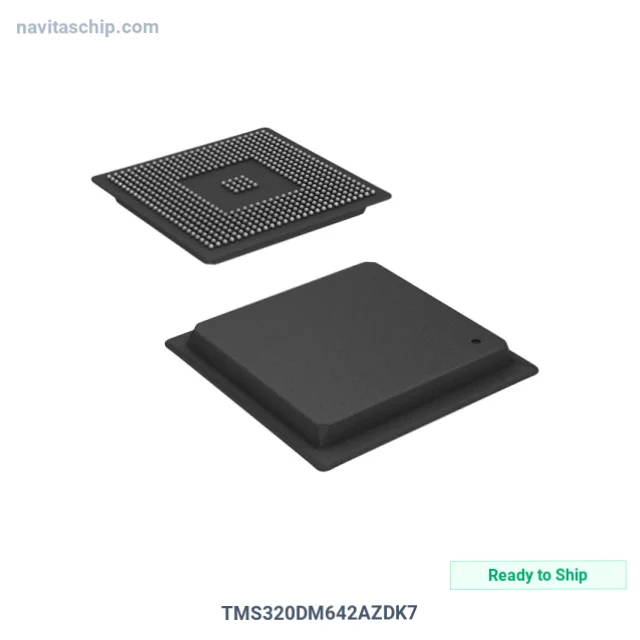

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TMS320DM642AZDK7 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-1670187 |
| Description | IC FIXED-POINT DSP 548-FCBGA |
| Spec | 548-BFBGA, FCBGA |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Texas Instruments |
| Package | Bulk |
| Product Status | Not For New Designs |
| Type | Fixed Point |
| Interface | Host Interface, I2C, McASP, McBSP, PCI |
| Clock Rate | 720MHz |
| Non-Volatile Memory | External |
| On-Chip RAM | 160kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.40V |
| Operating Temperature | 0°C ~ 90°C (TC) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 548-FCBGA (23x23) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TMS320DM642AZDK7 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TMS320DM642AZDK7 is a Digital Signal Processor (DSP) manufactured by Texas Instruments (TI). Integrated Circuit Fixed-Point Digital Signal Processor in 548-Pin BGA Package, housed in a compact 548-FCBGA (23x23) package.
Facing hard-to-find legacy DSP with original date codes and traceability? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Interface: Host Interface, I2C, McASP, McBSP, PCI
- Operating Temperature: 0°C ~ 90°C (TC)
- Mounting: Surface Mount
- Package: 548-BFBGA, FCBGA
- Device Package: 548-FCBGA (23x23)
- RoHS Compliant
Applications
Essential component for:
- industrial automation
- consumer electronics
- digital audio effects, mixing and equalization
- instrumentation and test equipment
Why Choose NavitasChip for TMS320DM642AZDK7?
NavitasChip offers cost-saving procurement for the TMS320DM642AZDK7 and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Bulk or Custom Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
TMS320DM642AZDK7 available for international procurement with multiple shipping origin options.
