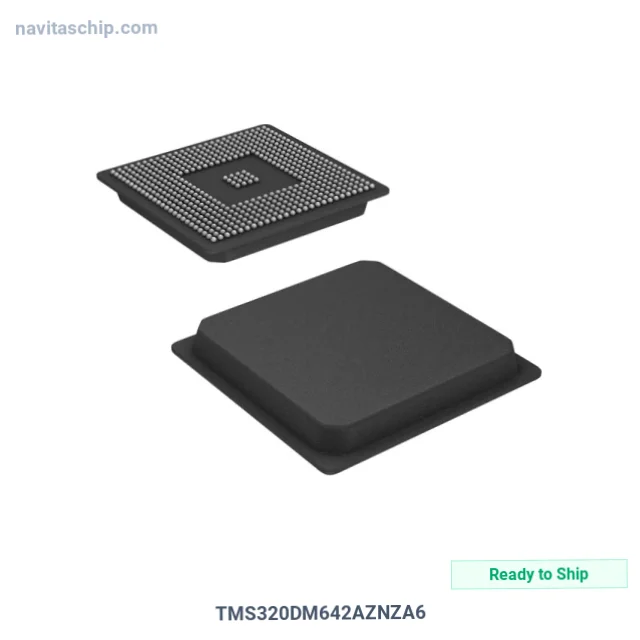

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TMS320DM642AZNZA6 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-1670193 |
| Description | IC FIXED-POINT DSP 548-FCBGA |
| Spec | 548-BBGA, FCBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Not For New Designs |
| Type | Fixed Point |
| Interface | Host Interface, I2C, McASP, McBSP, PCI |
| Clock Rate | 600MHz |
| Non-Volatile Memory | External |
| On-Chip RAM | 160kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.40V |
| Operating Temperature | -40°C ~ 105°C (TC) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 548-FCBGA (27x27) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TMS320DM642AZNZA6 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TMS320DM642AZNZA6 is a Digital Signal Processor (DSP) manufactured by Texas Instruments (TI). Integrated Circuit Fixed-Point Digital Signal Processor in 548-Pin BGA Package, housed in a compact 548-FCBGA (27x27) package.
Key Technical Specifications
- Interface: Host Interface, I2C, McASP, McBSP, PCI
- Operating Temperature: -40°C ~ 105°C (TC)
- Mounting: Surface Mount
- Package: 548-BBGA, FCBGA
- Device Package: 548-FCBGA (27x27)
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
