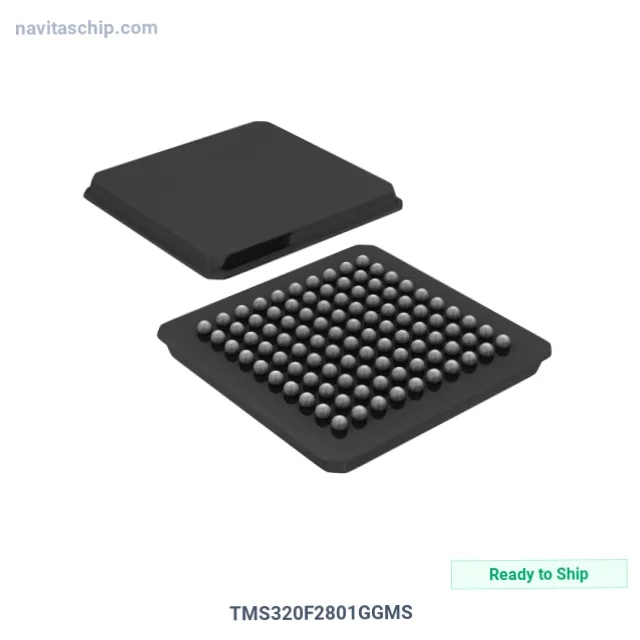

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TMS320F2801GGMS |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-807696 |
| Description | IC MCU 32BIT 32KB FLASH 100BGA |
| Spec | 100-LFBGA |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Obsolete |
| Core Processor | C28x |
| Core Size | 32-Bit |
| Speed | 100MHz |
| Connectivity | CANbus, I2C, SCI, SPI, UART/USART |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 35 |
| Program Memory Size | 32KB (16K x 16) |
| Program Memory Type | FLASH |
| RAM Size | 6K x 16 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 1.89V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-BGA MICROSTAR (10x10) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TMS320F2801GGMS Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TMS320F2801GGMS is a Microcontroller (MCU) manufactured by Texas Instruments (TI). Integrated Circuit Microcontroller 32bit 32kb Flash Memory in 100-Pin BGA Package, housed in a compact 100-BGA MICROSTAR (10x10) package.
In today's market, excess inventory tying up working capital can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 100-LFBGA
- Device Package: 100-BGA MICROSTAR (10x10)
Applications
Ideal solution for:
- embedded systems
- wearable devices
- smart home
Why Choose NavitasChip for TMS320F2801GGMS?
NavitasChip offers cost-saving procurement for the TMS320F2801GGMS and thousands of other electronic components.
- Availability: Available Now
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Reliable supplier of TMS320F2801GGMS for the Japan and Taiwan markets.
TMS320F2801GGMS - Get instant quote online.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
