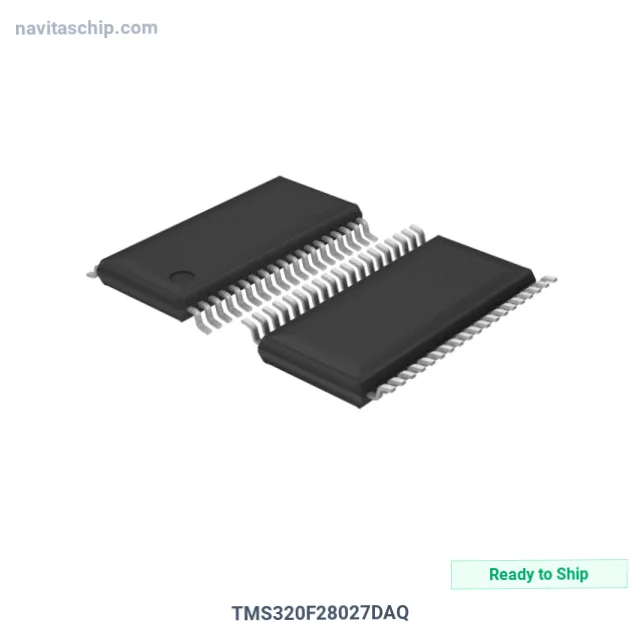

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TMS320F28027DAQ |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | N96108863 |
| Description | IC MCU 32BIT 64KB FLASH 38TSSOP |
| Spec | 38-TSSOP (0.240\ |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Obsolete |
| Core Processor | C28x |
| Core Size | 32-Bit |
| Speed | 60MHz |
| Connectivity | I2C, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 20 |
| Program Memory Size | 64KB (32K x 16) |
| Program Memory Type | FLASH |
| RAM Size | 6K x 16 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 1.995V |
| Data Converters | A/D 7x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 38-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TMS320F28027DAQ Datasheet |
| Product Image | View Large Image |
Environmental Compliance
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
Product Description
The TMS320F28027DAQ is a Microcontroller (MCU) manufactured by Texas Instruments (TI). Integrated Circuit Microcontroller 32bit 64kb Flash Memory in 38-Pin TSSOP Package, housed in a compact 38-TSSOP package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 38-TSSOP (0.240\
- Device Package: 38-TSSOP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
