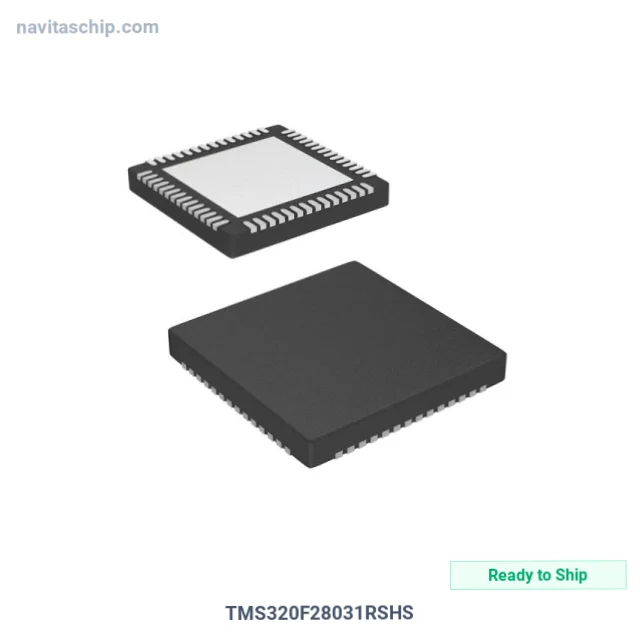

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TMS320F28031RSHS |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | N96110318 |
| Description | IC MCU 32BIT 64KB FLASH 56VQFN |
| Spec | 56-VFQFN Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Active |
| Core Processor | C28x |
| Core Size | 32-Bit |
| Speed | 60MHz |
| Connectivity | CANbus, I2C, LINbus, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 26 |
| Program Memory Size | 64KB (32K x 16) |
| Program Memory Type | FLASH |
| RAM Size | 8K x 16 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 1.995V |
| Data Converters | A/D 13x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 56-VQFN (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TMS320F28031RSHS Datasheet |
| Product Image | View Large Image |
Environmental Compliance
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
Product Description
The TMS320F28031RSHS is a Microcontroller (MCU) manufactured by Texas Instruments (TI). Integrated Circuit Microcontroller 32bit 64kb Flash Memory 56vqfn, housed in a compact 56-VQFN (7x7) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 56-VFQFN Exposed Pad
- Device Package: 56-VQFN (7x7)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
