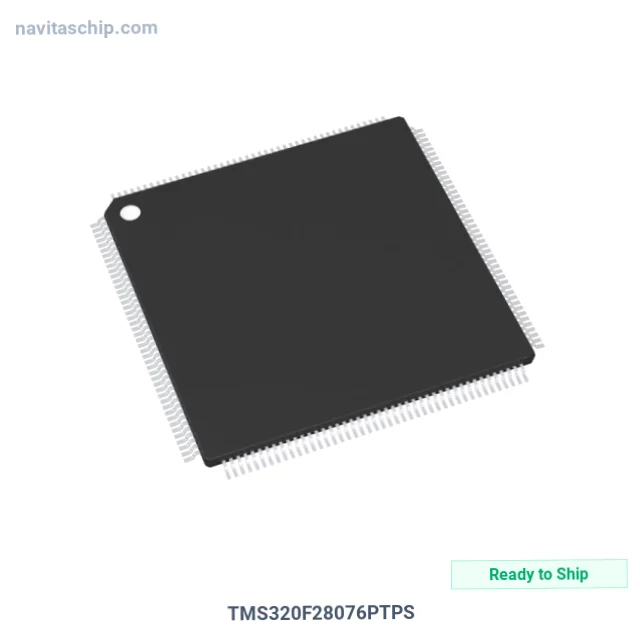

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TMS320F28076PTPS |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-10820230 |
| Description | IC MCU 32BIT 512KB FLSH 176HLQFP |
| Spec | 176-LQFP Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Active |
| Core Processor | C28x |
| Core Size | 32-Bit |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, I2C, McBSP, SCI, SPI, UART/USART, USB |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 97 |
| Program Memory Size | 512KB (256K x 16) |
| Program Memory Type | FLASH |
| RAM Size | 50K x 16 |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 3.47V |
| Data Converters | A/D 17x12b; D/A 1x12b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-HLQFP (24x24) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TMS320F28076PTPS Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TMS320F28076PTPS is a Microcontroller (MCU) manufactured by Texas Instruments (TI). Integrated Circuit Microcontroller 32bit 512kb Flash 176hlqfp, housed in a compact 176-HLQFP (24x24) package.
Struggling with challenging Target Price (TP) requirements? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting: Surface Mount
- Package: 176-LQFP Exposed Pad
- Device Package: 176-HLQFP (24x24)
- RoHS Compliant
Applications
Ideal solution for:
- embedded systems
- consumer electronics
- wearable devices
- industrial control
- smart home
Why Choose NavitasChip for TMS320F28076PTPS?
NavitasChip offers hard-to-find component sourcing for legacy systems for the TMS320F28076PTPS and thousands of other electronic components.
- Availability: Available Now
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Global supply network for TMS320F28076PTPS with distribution hubs in Hong Kong, Singapore, and Shenzhen.
TMS320F28076PTPS - Request a quote today.
