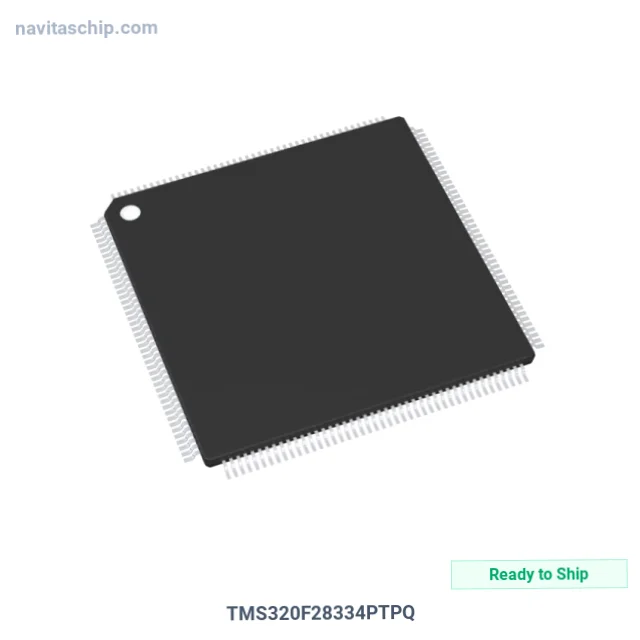

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TMS320F28334PTPQ |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-2749737 |
| Description | IC MCU 32BIT 256KB FLSH 176HLQFP |
| Spec | 176-LQFP Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | C28x |
| Core Size | 32-Bit |
| Speed | 150MHz |
| Connectivity | CANbus, EBI/EMI, I2C, McBSP, SCI, SPI, UART/USART |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 88 |
| Program Memory Size | 256KB (128K x 16) |
| Program Memory Type | FLASH |
| RAM Size | 34K x 16 |
| Voltage - Supply (Vcc/Vdd) | 1.805V ~ 1.995V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-HLQFP (24x24) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TMS320F28334PTPQ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TMS320F28334PTPQ is a Microcontroller (MCU) manufactured by Texas Instruments (TI). Integrated Circuit Microcontroller 32bit 256kb Flash 176hlqfp, housed in a compact 176-HLQFP (24x24) package. Automotive qualified (AEC-Q100/Q101).
Facing MCU allocation crisis? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 176-LQFP Exposed Pad
- Device Package: 176-HLQFP (24x24)
- RoHS Compliant
Applications
Engineered specifically for:
- embedded systems
- consumer electronics
- smart home
Why Choose NavitasChip for TMS320F28334PTPQ?
NavitasChip offers cost-effective alternative to authorized distributors for the TMS320F28334PTPQ and thousands of other electronic components.
- Availability: Available Now
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
TMS320F28334PTPQ available for international procurement with multiple shipping origin options.
TMS320F28334PTPQ - Inquire for bulk discount.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
