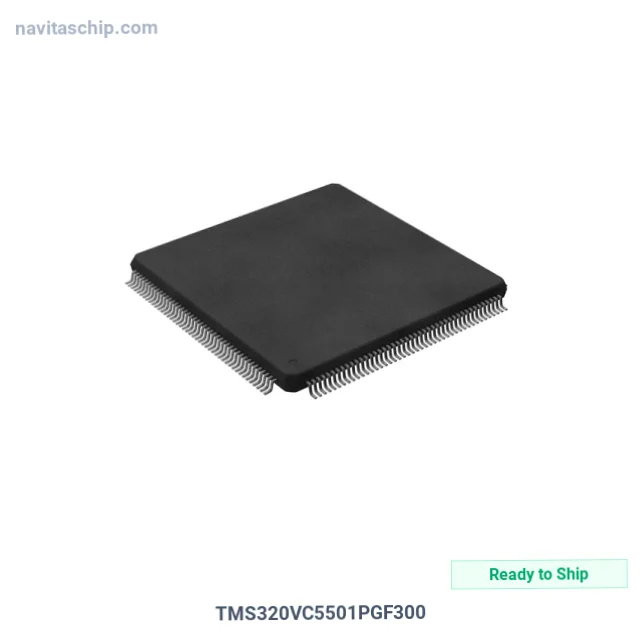

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TMS320VC5501PGF300 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-691762 |
| Description | IC FXD-PNT DSP 600 MIPS 176-LQFP |
| Spec | 176-LQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Active |
| Type | Fixed Point |
| Interface | Host Interface, I2C, McBSP, UART |
| Clock Rate | 300MHz |
| Non-Volatile Memory | ROM (32kB) |
| On-Chip RAM | 48kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.26V |
| Operating Temperature | -40°C ~ 85°C (TC) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LQFP (24x24) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TMS320VC5501PGF300 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TMS320VC5501PGF300 is a Digital Signal Processor (DSP) manufactured by Texas Instruments (TI). Integrated Circuit Fxd-Pnt Digital Signal Processor 600 Mips in 176-Pin LQFP Package, housed in a compact 176-LQFP (24x24) package.
Key Technical Specifications
- Interface: Host Interface, I2C, McBSP, UART
- Operating Temperature: -40°C ~ 85°C (TC)
- Mounting: Surface Mount
- Package: 176-LQFP
- Device Package: 176-LQFP (24x24)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
