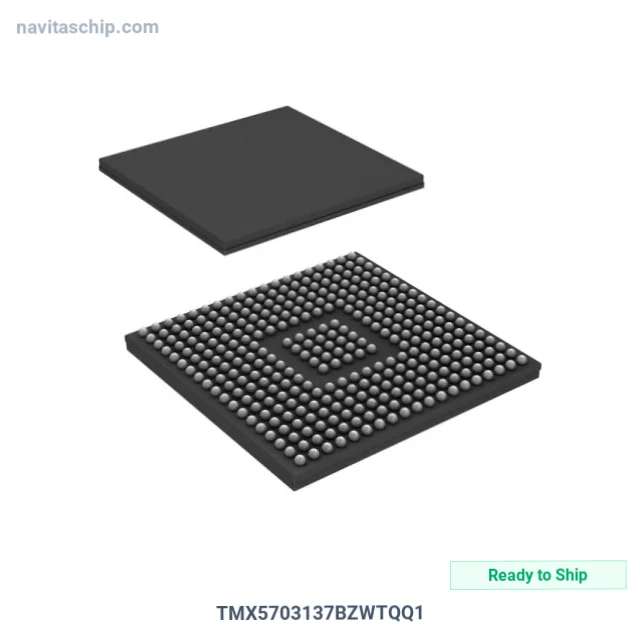

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TMX5703137BZWTQQ1 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-3431227 |
| Description | IC MCU 16/32B 3MB FLASH 337NFBGA |
| Spec | 337-LFBGA |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Discontinued at |
| Core Processor | ARM® Cortex®-R4F |
| Core Size | 16/32-Bit |
| Speed | 180MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, FlexRay, I2C, LINbus, MibSPI, SCI, SPI, UART/USART |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 120 |
| Program Memory Size | 3MB (3M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| RAM Size | 256K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 3.6V |
| Data Converters | A/D 24x12b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 337-NFBGA (16x16) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TMX5703137BZWTQQ1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TMX5703137BZWTQQ1 is a Microcontroller (MCU) manufactured by Texas Instruments (TI). Integrated Circuit Microcontroller 16/32b 3mb Flash Memory in 337-Pin BGA Package, housed in a compact 337-NFBGA (16x16) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 337-LFBGA
- Device Package: 337-NFBGA (16x16)
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
