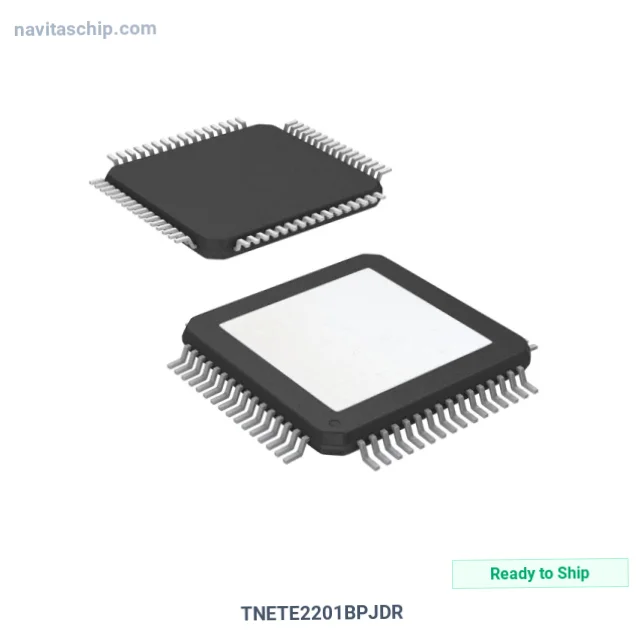

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TNETE2201BPJDR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-1670326 |
| Description | IC TRANSCEIVER HALF 1/1 64HTQFP |
| Spec | 64-TQFP Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | Transceiver |
| Protocol | Gigabit Ethernet |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Half |
| Data Rate | 1.25Gbps |
| Voltage - Supply | 3.14V ~ 3.47V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-HTQFP (10x10) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TNETE2201BPJDR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TNETE2201BPJDR is an Interface Driver Receiver Transceiver IC manufactured by Texas Instruments (TI). Integrated Circuit Transceiver Half 1/1 64htqfp, housed in a compact 64-HTQFP (10x10) package, with 3.14V ~ 3.47V supply voltage.
Key Technical Specifications
- Supply Voltage: 3.14V ~ 3.47V
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 64-TQFP Exposed Pad
- Device Package: 64-HTQFP (10x10)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
