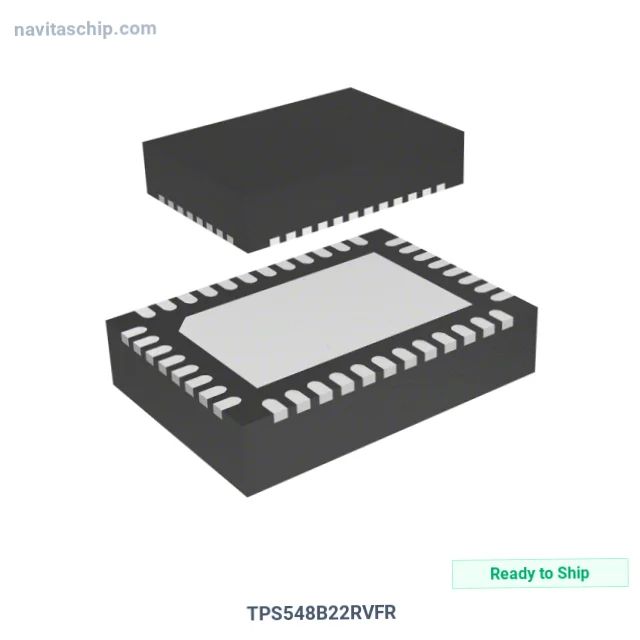

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TPS548B22RVFR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-6674508 |
| Description | IC REG BUCK ADJ 25A 40LQFN |
| Spec | 40-PowerLFQFN |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 1.5V |
| Voltage - Input (Max) | 18V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 5.5V |
| Current - Output | 25A |
| Frequency - Switching | Selectable |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 40-LQFN-CLIP (7x5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TPS548B22RVFR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TPS548B22RVFR is a DC-DC Switching Voltage Regulator manufactured by Texas Instruments (TI). Integrated Circuit Regulator Buck Adjustable 25a 40lqfn, housed in a compact 40-LQFN-CLIP (7x5) package.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 40-PowerLFQFN
- Device Package: 40-LQFN-CLIP (7x5)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
